9S312-R

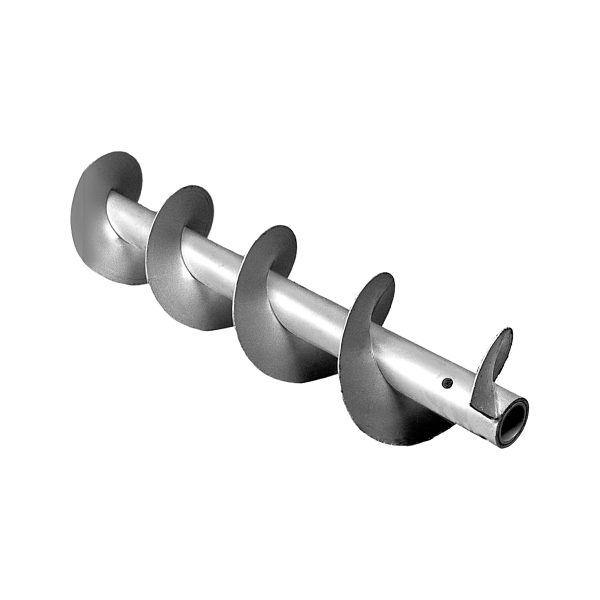

Martin 9S312-R Sectional Screw Conveyor Screw, 9 in Dia x 118 in L, 9 in Pitch, Steel

  • Item#: 9S312-R
  • Mfr#: 9S312-R
  • UPC: 697950127149
    • Can be manufactured from a wide range of materials
    • Pitch can be varied on a MTO basis
    • Left Hand available
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

The letter "S" indicates screw conveyor with bulttweld flighting. The figures to the left of the letters indicate the nominal outside diameter of the conveyor in inches. The first figure following the letters is twice the diameter of the coupling in 1/64 in. Right hand flight helix wraps around the pipe in a clockwise direction.

Martin Conveyor Screw, Sectional Screw, 9 in Dia, 118 in Length, Steel, 9 in Pitch, Right Hand Flight Type

SPECIFICATIONS

Material      :      Steel
Flight Type      :      Right Hand
Type      :      Sectional Screw
Diameter      :      9 in
Length      :      118 in
Pitch      :      9 in

DOCUMENTS

  • pdf
    Manual
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_4CTF16_5_Manual.pdf
  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_CSFP2_Catalog.pdf
