9S P/B

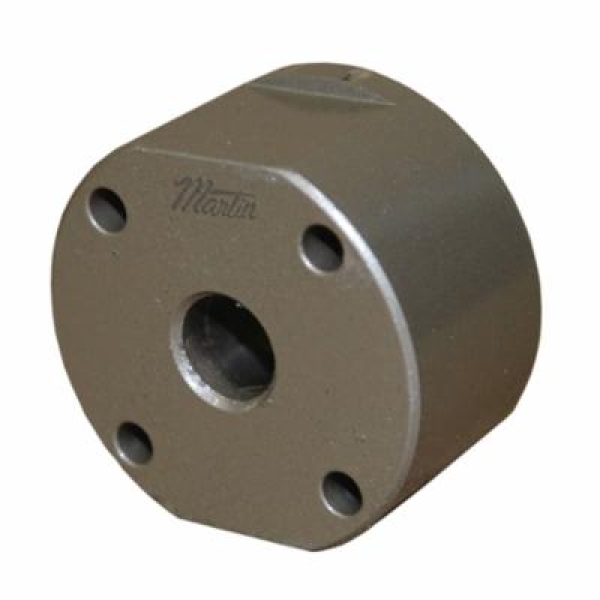

Martin Quadra-Flex® 9S P/B Reborable Type S Coupling Flange, 09 Coupling, 7/8 to 2-3/4 in Dia Bore, 2.406 in L Through Bore, 3.63 in Dia Hub, Cast Iron

  • Item#: 9S P/B
  • Mfr#: 9S P/B
  • UPC: 697950277950
    • No lubrication needed and easy to install
    • Available in three styles, J and S flanges - Bored to size, B flanges - QD bushed and SC spacer flanges - Pump style
    • Precise machining and processes ensure consistent finish and high quality
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Martin Quadra-Flex® is a proven design which offers long life, torsional flexibility, ease of installation and withstands misalignment, shock and vibration. Available in sizes 3 to 16 in bored to size, QD bushed, spacer type and plain bore for custom requirements.

Martin Quadra-Flex® Coupling Flange, Reborable Type S, 09 Coupling, 7/8 to 2-3/4 in Bore Dia, 3.63 in Hub Dia, 0.78 in Hub Length, 3750 rpm Maximum, 2.406 in Length Through Bore, Cast Iron

SPECIFICATIONS

Type      :      Reborable Type S
Material      :      Cast Iron
Maximum Speed      :      3750 rpm
Hub Length      :      0.78 in
Coupling Size      :      09
Length Through Bore      :      2.406 in
Hub Diameter      :      3.63 in

DOCUMENTS

  • pdf
    Specification Sheet
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10018CHN_Specification_Sheet.pdf
  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_4H_7_8_Catalog.pdf
