8MX36S62-1610

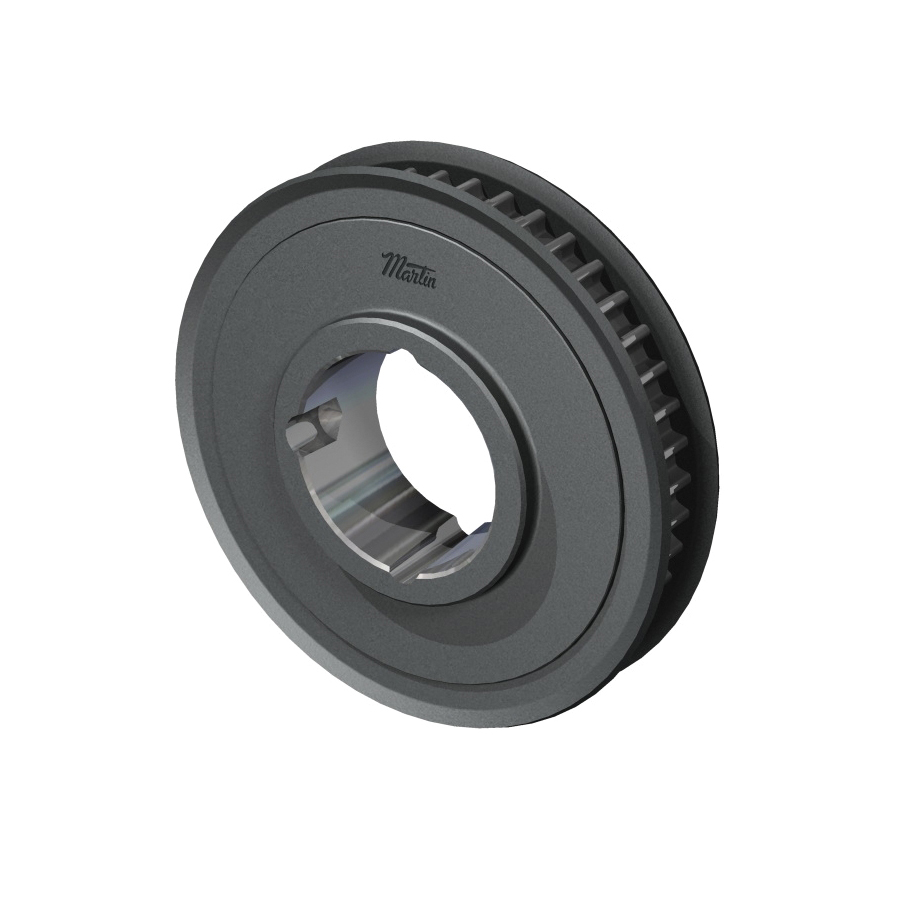

Martin MPC® 8MX36S62-1610 Solid Type AF-1 High Torque Belt Drive Sprocket, 1/2 to 1-5/8 in TB Bushed Bore, 3.546 in OD, 36 Grooves, 3.609 in Dia Pitch, 2.91 in W Face
- CP#:
- Item#: 8MX36S62-1610
- Mfr#: 8MX36S62-1610
- UPC: 697950720715
- Non slip toothed drive with no metal to metal contact
- Exhibit many of the best features of chain drives and belt drives
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin MPC® sprockets are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD Bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating pulley.
Martin MPC® High Torque Belt Drive Sprocket, Solid Type AF-1, TB Bushed Bore, 1/2 to 1-5/8 in Bore Dia, 3.546 in Outside Dia, 3.609 in, 36 Grooves, 8 mm Pitch, 2.91 in Face Width, 4.01 in Flange Dia, 1610 Bushing, 2.88 in Overall Length, Steel, Protective Coating
SPECIFICATIONS
| Bushing Type | : | 1610 |
| Material | : | Steel |
| Pitch | : | 8 mm |
| Overall Length | : | 2.88 in |
| Bore Diameter | : | 1/2 to 1-5/8 in |
| Bore Type | : | TB Bushed |
| Outside Diameter | : | 3.546 in |
| Number of Grooves | : | 36 |
| Pitch Diameter | : | 3.609 in |
| Face Width | : | 2.91 in |
| Type | : | Solid Type AF-1 |
| Flange Diameter | : | 4.01 in |
| Finish | : | Protective Coating |
