8H

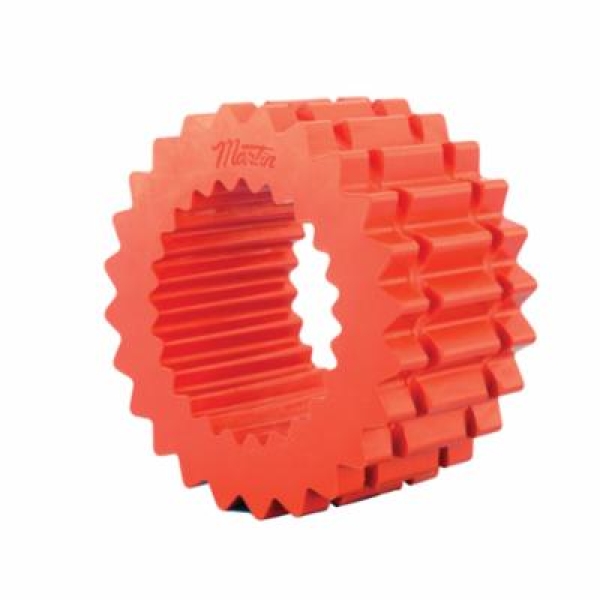

Martin Quadra-Flex® 8H One-Piece Coupling Sleeve, 08 Coupling, 2-1/2 in L, 5.047 in OD, 4500 rpm Max, Hytrel®
- CP#:
- Item#: 8H
- Mfr#: 8H
- UPC: 697950277417
- Sleeves available in four materials: TPR (Thermoplastic Rubber), EPDM, Neoprene and Hytrel
- Available split and un-split
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin Quadra-Flex® is a proven design which offers long life, torsional flexibility, ease of installation and withstands misalignment, shock and vibration. TPR, EPDM, Neoprene and Hytrel® sleeves are available in solid, split and semi-split construction.
Martin Quadra-Flex® Coupling Sleeve, One-Piece, 08 Coupling, 2-1/2 in Length, 5.047 in OD, 4530 in-lb Torque, 4500 rpm Maximum, -65 to 250 deg F, Hytrel®, Orange
SPECIFICATIONS
| Type | : | One-Piece |
| Outside Diameter | : | 5.047 in |
| Material | : | Hytrel® |
| Temperature Rating | : | -65 to 250 deg F |
| Torque Rating | : | 4530 in-lb |
| Finish | : | Orange |
| Coupling Size | : | 08 |
| Length | : | 2-1/2 in |
| Maximum Speed | : | 4500 rpm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_4H_7_8_Catalog.pdf
