Martin
815A21

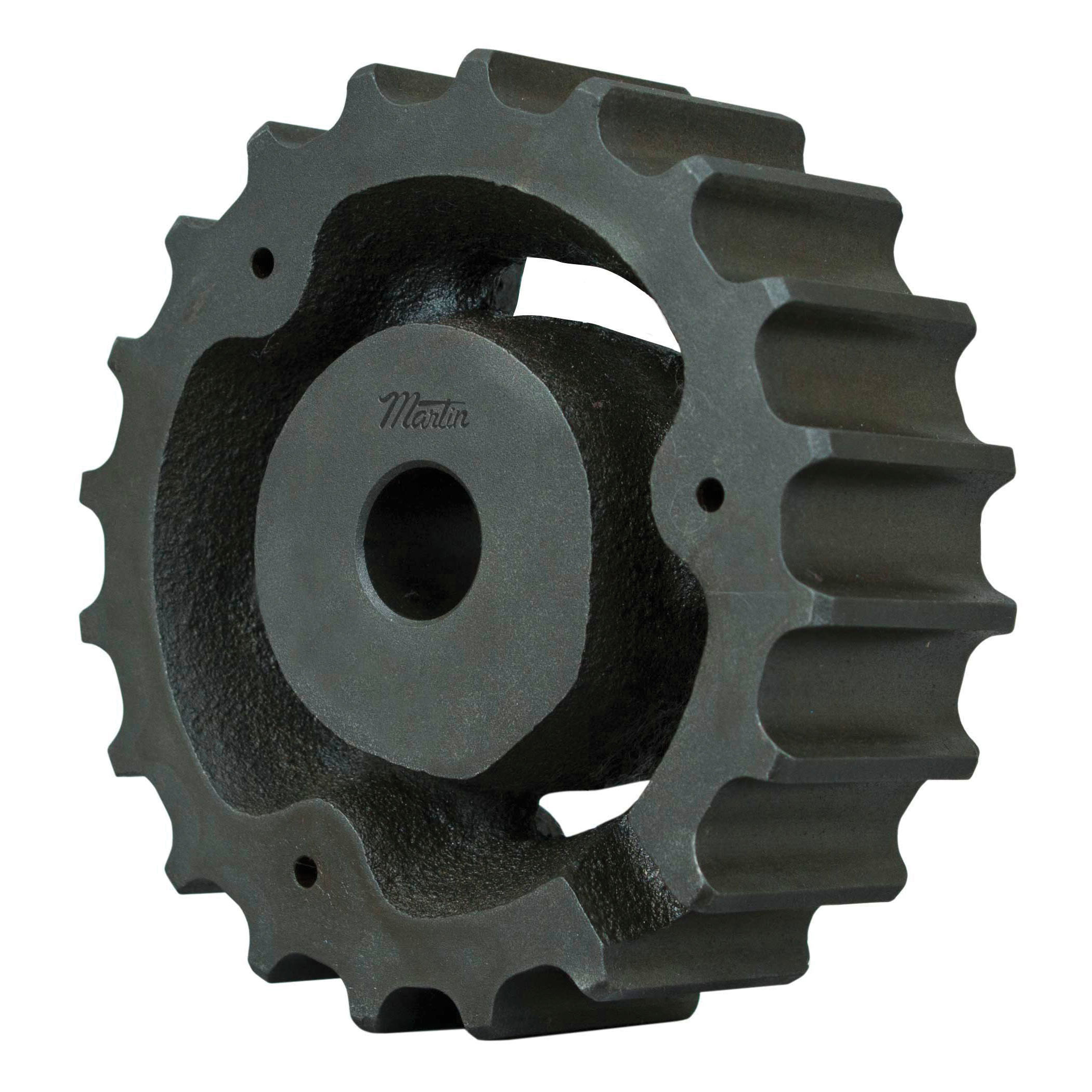

Martin 815A21 800 Series Arm Body Conveyor Sprocket, 3/4 to 1-3/4 in Dia Bore, 5.12 in OD, #815 Chain, 21 Teeth, Cast Iron
- Item#: 815A21
- Mfr#: 815A21
- UPC: 697950174884
- To be used with table top chains
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
- Manufactured of high carbon steel
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
800 series sprockets are also known as conveyor sprockets or tabletop sprockets. These specialty sprockets are used to move conveyors. The unique tooth profile allows the conveyors to move without protruding through them.
Martin Conveyor Sprocket, Arm Body, Series: 800 Series, 3/4 to 1-3/4 in Bore, 5.12 in OD, #815 Chain, 21 Teeth, 5.089 in Pitch Diameter, 1-11/16 in Length Through Bore, Cast Iron
SPECIFICATIONS
| Length Through Bore | : | 1-11/16 in |
| Pitch Diameter | : | 5.089 in |
| Series | : | 800 Series |
| Type | : | Arm Body |
| Bore Diameter | : | 3/4 to 1-3/4 in |
| Outside Diameter | : | 5.12 in |
| Chain Size | : | #815 |
| Number of Teeth | : | 21 |
| Material | : | Cast Iron |
