80SK15

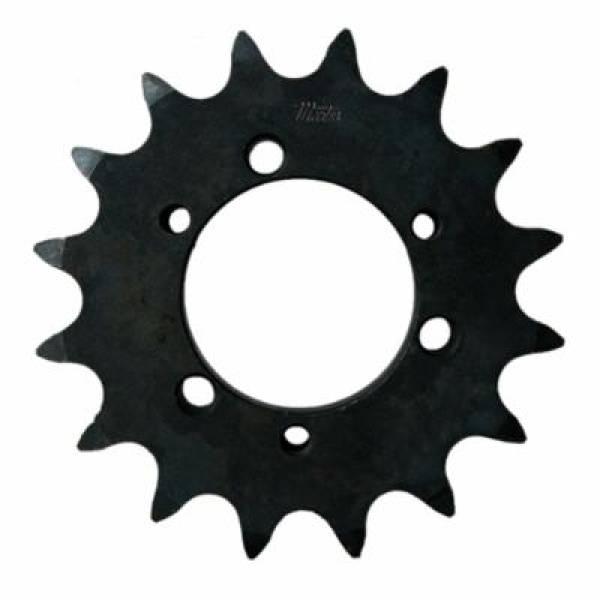

Martin 80SK15 QD Bushed Type B Single Pitch Roller Chain Sprocket, 5.305 in OD, #80 Chain, 15 Teeth, 1 in Pitch, Steel

  • Item#: 80SK15
  • Mfr#: 80SK15
  • UPC: 697950020006
    • Manufactured of high carbon steel
    • Precise machining and processes ensure consistent finish and high quality
    • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

QD (quick detachable)is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.

Martin Single Pitch Roller Chain Sprocket, QD Bushed Type B, 5.305 in Outside Dia, #80 Chain, 15 Teeth, 1 in Pitch, 4.81 in, 3.86 in Hub Dia, 1-15/16 in Length Through Bore, Type SK QD® Bushing, Steel

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

SPECIFICATIONS

Bushing Type      :      Type SK QD®
Outside Diameter      :      5.305 in
Chain Size      :      #80
Number of Teeth      :      15
Pitch      :      1 in
Material      :      Steel
Type      :      QD Bushed Type B
Pitch Diameter      :      4.81 in
Hub Diameter      :      3.86 in
Length Through Bore      :      1-15/16 in

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_50A112_Catalog.pdf
