80BS20HT 1 7/16

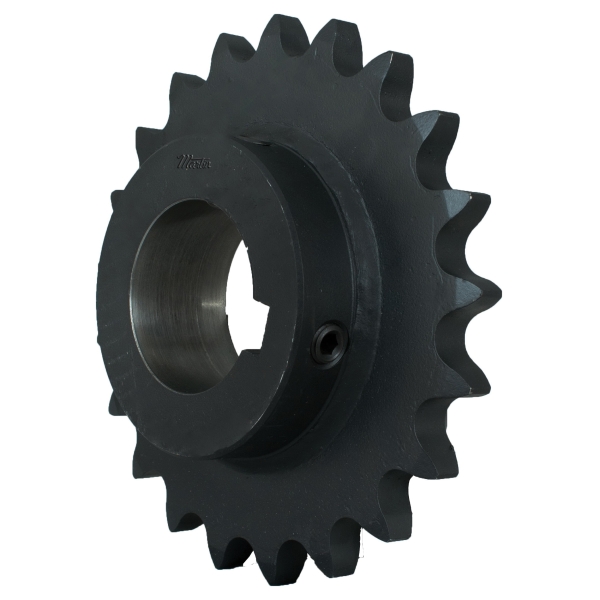

Martin 80BS20HT 1 7/16 Bored-to-Size Type BS Single Pitch Roller Chain Sprocket With Hardened Teeth and Keyway, 1-7/16 in Dia Bore, 6.914 in OD, #80 Chain, 20 Teeth, 1 in Pitch, Steel
- CP#:
- Item#: 80BS20HT 1 7/16
- Mfr#: 80BS20HT 1 7/16
- UPC: 697950164342
- Keyway is on center line of tooth
- Stock finished bores
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
- 2 set screws keyed on centerline of tooth
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
These finished bore sprockets are hardened, shaft ready and come complete with keyways and setscrews. The keyways are on center line of the tooth. Bored to size sprockets with 1/2 in bores and smaller are stocked with (2) setscrews only.
Martin Single Pitch Roller Chain Sprocket, Bored-to-Size Type BS, 1-7/16 in Bore Dia, 6.914 in Outside Dia, #80 Chain, 20 Teeth, 1 in Pitch, 6.3925 in, 4-1/4 in Hub Dia, 3/8-16 x 3/8 in Screw, 3/8 x 3/16 in Keyway, 1-1/2 in Length Through Bore, Steel
SPECIFICATIONS
| Bore Diameter | : | 1-7/16 in |
| Outside Diameter | : | 6.914 in |
| Chain Size | : | #80 |
| Number of Teeth | : | 20 |
| Pitch | : | 1 in |
| Material | : | Steel |
| Keyway Size | : | 3/8 x 3/16 in |
| Type | : | Bored-to-Size Type BS |
| Pitch Diameter | : | 6.3925 in |
| Hub Diameter | : | 4-1/4 in |
| Length Through Bore | : | 1-1/2 in |
| Screw Size | : | 3/8-16 x 3/8 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_35BS10HT_1_2_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_35BS10HT_1_2_Specification_Sheet.pdf
