8020TBF

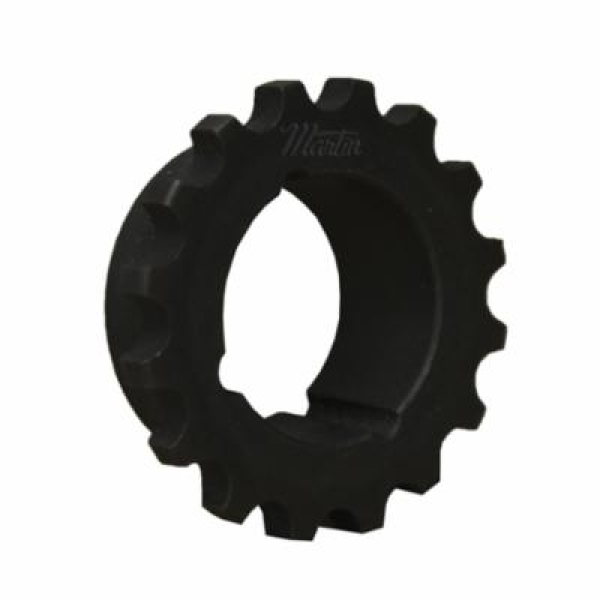

Martin 8020TBF Bushed Roller Chain Sprocket Coupling Hub, 80 Chain, 0.938 to 3 in Dia Bore, 20 Teeth, 6.59 in OD, 5-3/8 in Dia Hub, Steel
- CP#:
- Item#: 8020TBF
- Mfr#: 8020TBF
- UPC: 697950048086
- Select the smallest coupling that will accommodate both shafts
- For a reversing operation, shock or pulsating loads, or other severe operating conditions, select the next larger coupling size
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Roller chain couplings have a torque capacity in excess of the torque normally transmitted by shafting which falls within the coupling bore range. Select the smallest coupling, which will accommodate both shafts. For a reversing operation, shock or pulsating loads, or other severe operating conditions, select the next larger coupling size. A cover should be used to assure maximum service life, particularly if the coupling operates at high speeds or under moist conditions. For proper lubrication, fill the space between the cover and the coupling with soft to medium consistency coupling grease. Many finished bore sizes available as well as stock bore blanks that can be altered. Chains, covers stocked in all branch locations. All stock roller chain couplings have hardened teeth.
Martin Roller Chain Sprocket Coupling Hub, Bushed, Chain Number: 80, 0.938 to 3 in Bore Dia, 20 Teeth, 6.59 in Outside Dia, 5-3/8 in Hub Dia, 2000 rpm Maximum, 2 in Hub Length, 2 in Length Through Bore, Steel
SPECIFICATIONS
| Type | : | Bushed |
| Number of Teeth | : | 20 |
| Outside Diameter | : | 6.59 in |
| Material | : | Steel |
| Maximum Speed | : | 2000 rpm |
| Length Through Bore | : | 2 in |
| Hub Length | : | 2 in |
| Chain Number | : | 80 |
| Hub Diameter | : | 5-3/8 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10018CHN_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_4016_Catalog.pdf
