- Martin 8 5V 800 TB
8 5V 800 TB

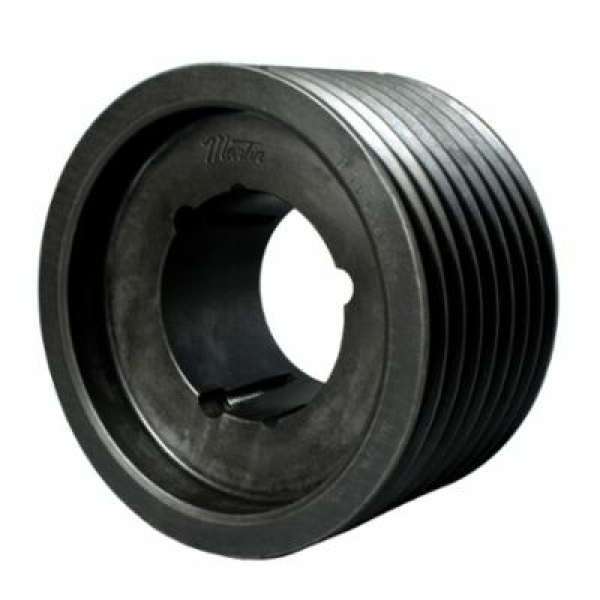

Martin Hi-Cap® 8 5V 800 TB Solid Type A-1 Wedge Stock Sheave, 0.938 to 3 in TB Bushed Bore, 8 in OD, 8 Grooves, 7.9 in Dia Pitch, 5.813 in W Face
- CP#:
- Item#: 8 5V 800 TB
- Mfr#: 8 5V 800 TB
- UPC: 697950158709
- Class 30 Gray Iron
- Tolerances adhere to industry guidelines
- Precise machining and processes ensure consistent finish and high quality
- Statically balanced with maximum rim speed marked on print
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V, and 8V belts.
Martin Hi-Cap® Wedge Stock Sheave, Solid Type A-1, TB Bushed Bore, 0.938 to 3 in Bore, 8 in OD, 7.9 in Pitch Diameter, 8 Grooves, 5.813 in Face Width, 3020 Bushing, 5.81 in Overall Length, For Use With: 5V-Cross Section V-Belts, Cast Iron
SPECIFICATIONS
| Overall Length | : | 5.81 in |
| Material | : | Cast Iron |
| Bushing Type | : | 3020 |
| Bore Diameter | : | 0.938 to 3 in |
| Bore Type | : | TB Bushed |
| Outside Diameter | : | 8 in |
| Number of Grooves | : | 8 |
| Pitch Diameter | : | 7.9 in |
| Face Width | : | 5.813 in |
| Suitable For Use With | : | 5V-Cross Section V-Belts |
| Type | : | Solid Type A-1 |
