- Martin 78CS9 2
78CS9 2

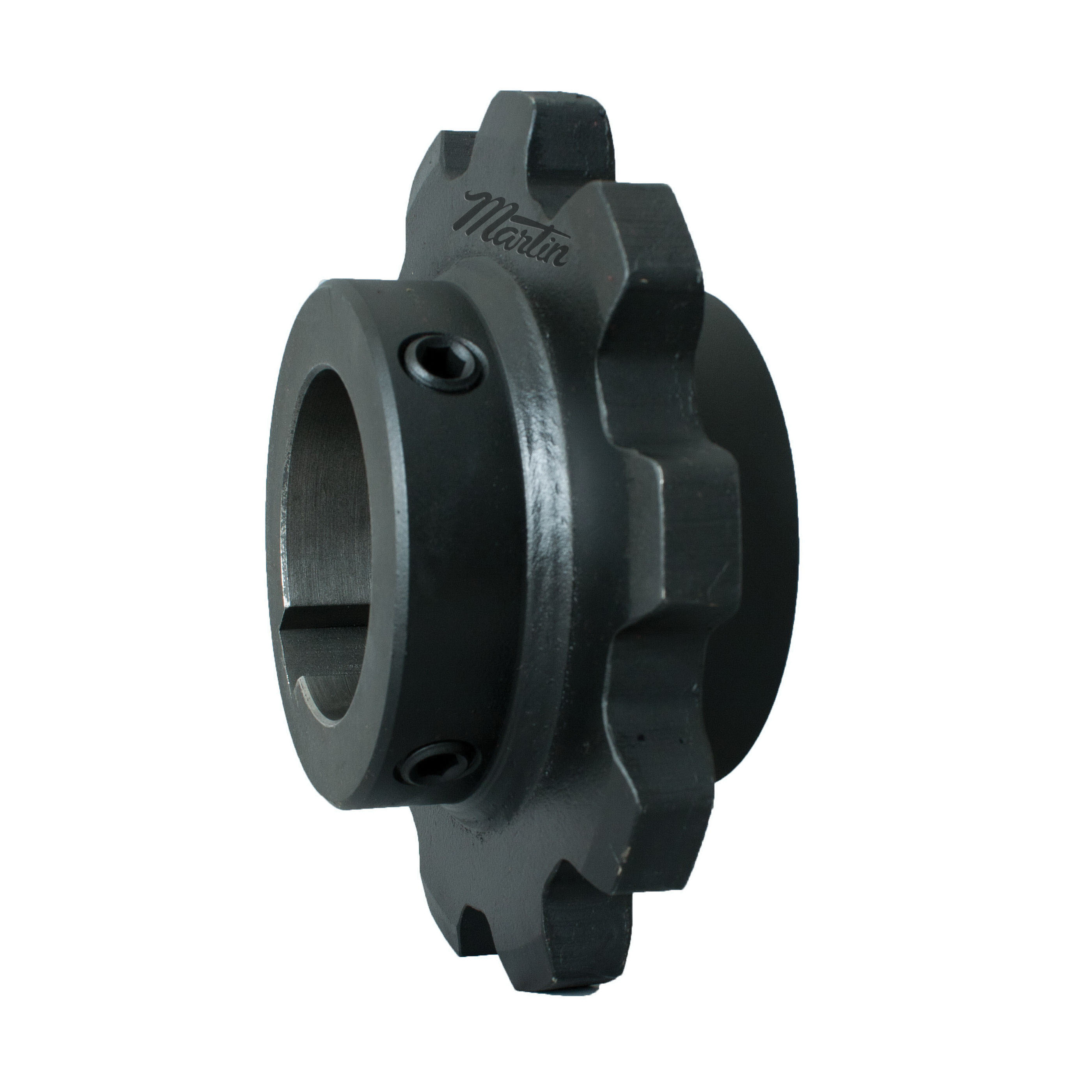

Martin Accu-Torch® 78CS9 2 Type C Bored-to-Size Flame Cut Sprocket, 2 in Dia Bore, 8.176 in OD, #78 Chain, 9 Teeth, 2.609 in Pitch, 7.63 in Dia Pitch, Steel
- CP#:
- Item#: 78CS9 2
- Mfr#: 78CS9 2
- UPC: 697950324432
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Shaft ready part saves on downtime cost and extra charges
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin Accu-Torch® steel sprockets are available for virtually all engineering class chains in style A, B, and C. Also available as split with welded hub and split or solid detachable hub. They can also be furnished as shear pin type. Where possible please specify chain number, pitch diameter, number of teeth, bore and keyway size, and hub style required. Accu-Torch® sprockets are not intended to replace cut tooth roller chain sprockets.
Martin Accu-Torch® Flame Cut Sprocket, Type C Bored-to-Size, 2 in Bore, 8.176 in OD, #78 Chain, 9 Teeth, 2.609 in Pitch, 7.63 in Pitch Diameter, 5-1/4 in Diameter Hub, 1/2-13 x 1/2 in Screw, 1/2 x 1/4 in Keyway, 3-7/8 in Length Through Bore, Steel
SPECIFICATIONS
| Bore Diameter | : | 2 in |
| Outside Diameter | : | 8.176 in |
| Chain Size | : | #78 |
| Number of Teeth | : | 9 |
| Pitch | : | 2.609 in |
| Material | : | Steel |
| Type | : | Type C Bored-to-Size |
| Screw Size | : | 1/2-13 x 1/2 in |
| Hub Diameter | : | 5-1/4 in |
| Keyway Size | : | 1/2 x 1/4 in |
| Length Through Bore | : | 3-7/8 in |
| Pitch Diameter | : | 7.63 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_1030A10_Catalog.pdf -
