78C8

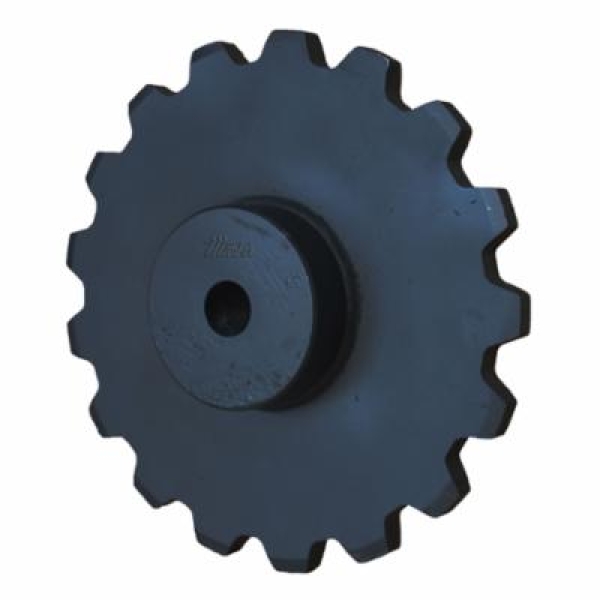

Martin Accu-Torch® 78C8 Flame Cut Stock Bore Type C Engineering Sprocket, 0.938 to 2.813 in Dia Bore, 7.299 in OD, 78 Chain, 8 Teeth, 2.609 in Pitch, 6.817 in Dia Pitch, Steel
- CP#:
- Item#: 78C8
- Mfr#: 78C8
- UPC: 697950069159
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin Accu-Torch® steel sprockets are available for virtually all engineering class chains in style A, B, and C. Also available as split with welded hub and split or solid detachable hub. They can also be furnished as shear pin type. Where possible please specify chain number, pitch diameter, number of teeth, bore and keyway size, and hub style required. Accu-Torch® sprockets are not intended to replace cut tooth roller chain sprockets.
Martin Accu-Torch® Engineering Sprocket, Flame Cut Stock Bore Type C, 0.938 to 2.813 in Bore Dia, 7.299 in Outside Dia, 78 Chain, 8 Teeth, 2.609 in Pitch, 6.817 in, 4-3/4 in Hub Dia, 3-1/8 in Length Through Bore, Steel
SPECIFICATIONS
| Bore Diameter | : | 0.938 to 2.813 in |
| Outside Diameter | : | 7.299 in |
| Chain Size | : | 78 |
| Number of Teeth | : | 8 |
| Pitch | : | 2.609 in |
| Material | : | Steel |
| Type | : | Flame Cut Stock Bore Type C |
| Hub Diameter | : | 4-3/4 in |
| Length Through Bore | : | 3-1/8 in |
| Pitch Diameter | : | 6.817 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_78A11_Catalog.pdf
