78A60

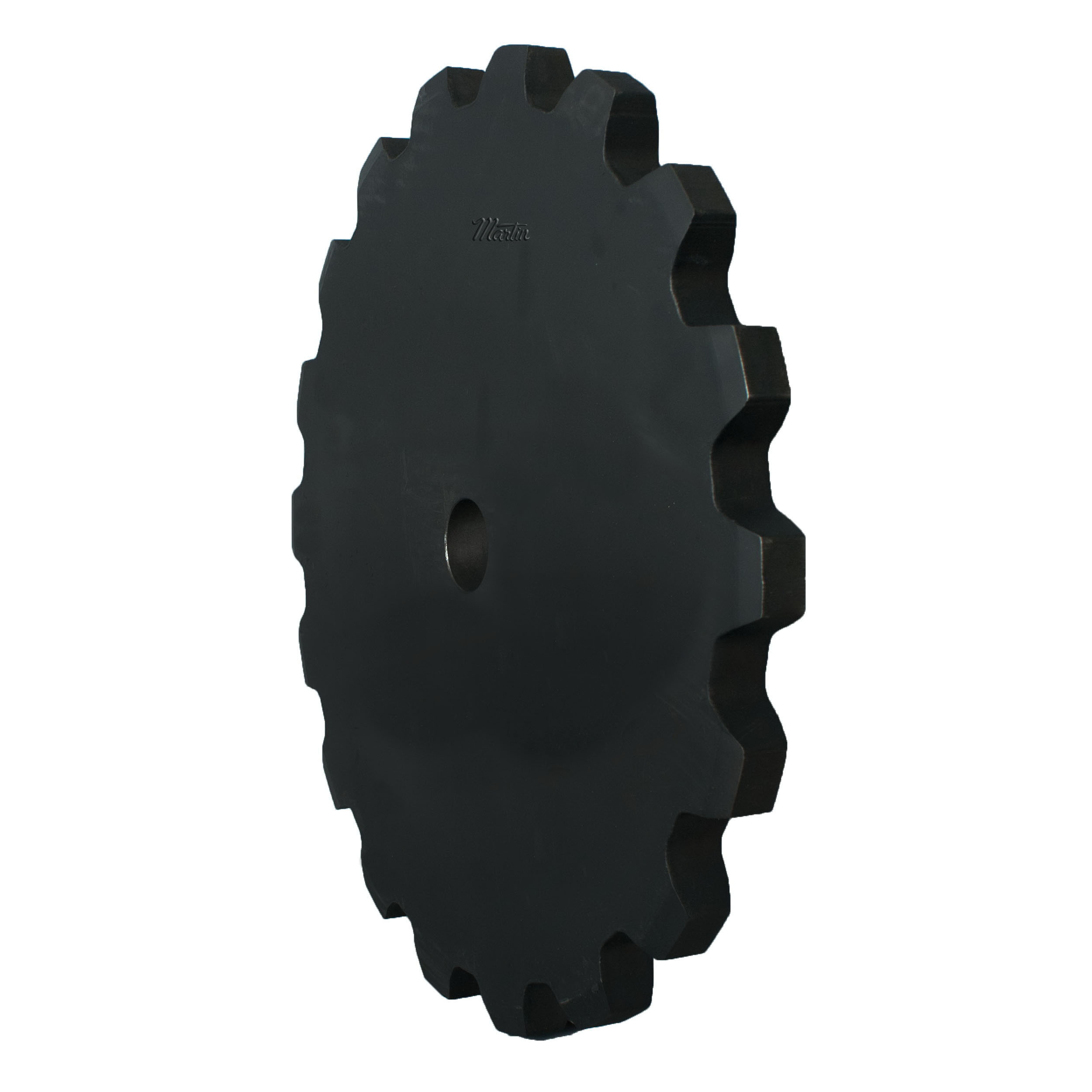

Martin Accu-Torch® 78A60 Type A Reboreable Flame Cut Sprocket, 1.5 to 48.533 in Dia Bore, 50.783 in OD, #78 Chain, 60 Teeth, 2.609 in Pitch, 49.85 in Dia Pitch, Steel
- CP#:
- Item#: 78A60
- Mfr#: 78A60
- UPC: 697950048758
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin Accu-Torch® steel sprockets are available for virtually all engineering class chains in style A, B, and C. Also available as split with welded hub and split or solid detachable hub. They can also be furnished as shear pin type. Where possible please specify chain number, pitch diameter, number of teeth, bore and keyway size, and hub style required. Accu-Torch® sprockets are not intended to replace cut tooth roller chain sprockets.
Martin Accu-Torch® Flame Cut Sprocket, Type A Reboreable, 1.5 to 48.533 in Bore, 50.783 in OD, #78 Chain, 60 Teeth, 2.609 in Pitch, 49.85 in Pitch Diameter, 7/8 in Length Through Bore, Steel
SPECIFICATIONS
| Bore Diameter | : | 1.5 to 48.533 in |
| Outside Diameter | : | 50.783 in |
| Chain Size | : | #78 |
| Number of Teeth | : | 60 |
| Pitch | : | 2.609 in |
| Material | : | Steel |
| Type | : | Type A Reboreable |
| Length Through Bore | : | 7/8 in |
| Pitch Diameter | : | 49.85 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_1030A10_Catalog.pdf -
VIDEO LINK
https://www.youtube.com/watch?v=fSomOMNB_-Q
