- Martin 78A11
78A11

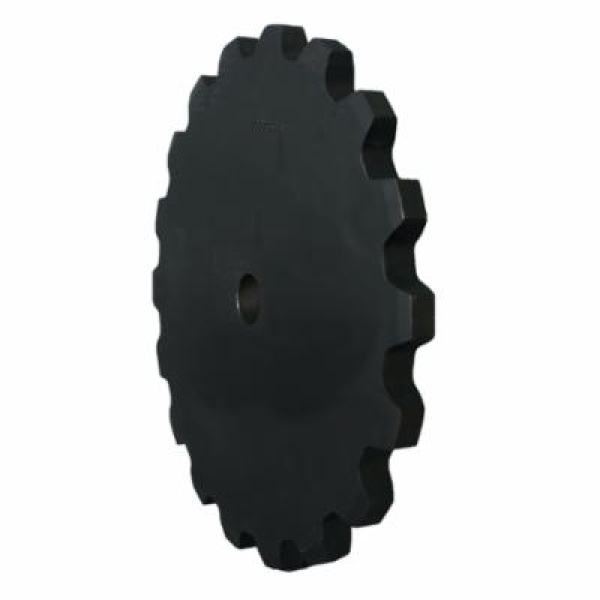

Martin Accu-Torch® 78A11 Flame Cut Stock Bore Type A Engineering Sprocket, 1-1/4 in Dia Bore, 9.894 in OD, 78 Chain, 11 Teeth, 2.609 in Pitch, 9.262 in Dia Pitch, Steel
- CP#:
- Item#: 78A11
- Mfr#: 78A11
- UPC: 697950048598
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin Accu-Torch® steel sprockets are available for virtually all engineering class chains in style A, B, and C. Also available as split with welded hub and split or solid detachable hub. They can also be furnished as shear pin type. Where possible please specify chain number, pitch diameter, number of teeth, bore and keyway size, and hub style required. Accu-Torch® sprockets are not intended to replace cut tooth roller chain sprockets.
Martin Accu-Torch® Engineering Sprocket, Flame Cut Stock Bore Type A, 1-1/4 in Bore Dia, 9.894 in Outside Dia, 78 Chain, 11 Teeth, 2.609 in Pitch, 9.262 in, 5-1/4 in Hub Dia, 7/8 in Length Through Bore, Steel
SPECIFICATIONS
| Bore Diameter | : | 1-1/4 in |
| Outside Diameter | : | 9.894 in |
| Chain Size | : | 78 |
| Number of Teeth | : | 11 |
| Pitch | : | 2.609 in |
| Material | : | Steel |
| Type | : | Flame Cut Stock Bore Type A |
| Hub Diameter | : | 5-1/4 in |
| Length Through Bore | : | 7/8 in |
| Pitch Diameter | : | 9.262 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_78A11_Catalog.pdf
