- Martin 72L050 SD
72L050 SD

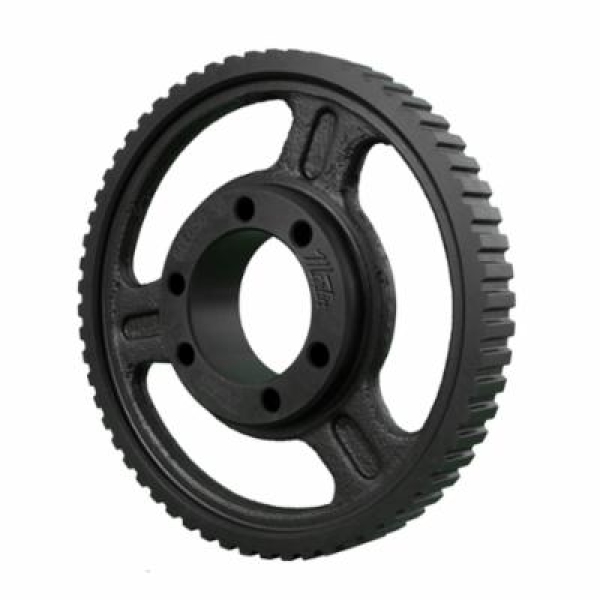

Martin 72L050 SD Spoked Type G-3 Stock Timing Pulley, 1/2 to 2 in QD® Bushed Bore, 8.564 in OD, 72 Grooves, 8.594 in Dia Pitch, 3/4 in W Face
- CP#:
- Item#: 72L050 SD
- Mfr#: 72L050 SD
- UPC: 697950122892
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Spoked Type G-3, QD® Bushed Bore, 1/2 to 2 in Bore Dia, 8.564 in Outside Dia, 8.594 in, 72 Grooves, 3/8 in Pitch, 3/4 in Face Width, SD Bushing, 1-13/16 in Overall Length, For Use With: 1/2 in W Type L Belt, Cast Iron
SPECIFICATIONS
| Overall Length | : | 1-13/16 in |
| Pitch | : | 3/8 in |
| Material | : | Cast Iron |
| Bushing Type | : | SD |
| Bore Diameter | : | 1/2 to 2 in |
| Bore Type | : | QD® Bushed |
| Outside Diameter | : | 8.564 in |
| Number of Grooves | : | 72 |
| Pitch Diameter | : | 8.594 in |
| Face Width | : | 3/4 in |
| Type | : | Spoked Type G-3 |
| Suitable For Use With | : | 1/2 in W Type L Belt |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10L050_Catalog.pdf
