Martin 72H150 SF
Martin

Martin 72H150 SF

loading
Martin
Email Print

72H150 SF

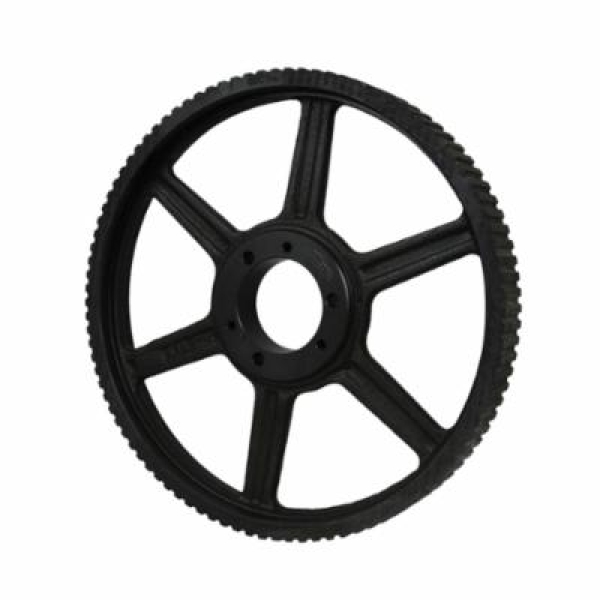

Martin 72H150 SF Spoked Type H-3 Stock Timing Pulley, 0.5 to 2.938 in QD® Bushed Bore, 11.405 in OD, 72 Grooves, 11.459 in Dia Pitch, 1.813 in W Face

  • Item#: 72H150 SF
  • Mfr#: 72H150 SF
  • UPC: 697950122861
    • Exhibit many of the best features of chain drives and belt drives
    • Non-slip toothed drive with no metal to metal contact
    • No lubrication needed
    • Precise machining and processes ensure consistent finish and high quality
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.

Martin Stock Timing Pulley, Spoked Type H-3, QD® Bushed Bore, 0.5 to 2.938 in Bore Dia, 11.405 in Outside Dia, 11.459 in, 72 Grooves, 1/2 in Pitch, 1.813 in Face Width, SF Bushing, 2-1/16 in Overall Length, For Use With: 1-1/2 in W Type H Belt, Cast Iron

SPECIFICATIONS

Overall Length      :      2-1/16 in
Pitch      :      1/2 in
Material      :      Cast Iron
Bushing Type      :      SF
Bore Diameter      :      0.5 to 2.938 in
Bore Type      :      QD® Bushed
Outside Diameter      :      11.405 in
Number of Grooves      :      72
Pitch Diameter      :      11.459 in
Face Width      :      1.813 in
Type      :      Spoked Type H-3
Suitable For Use With      :      1-1/2 in W Type H Belt

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10L050_Catalog.pdf
