6H 1 3/8

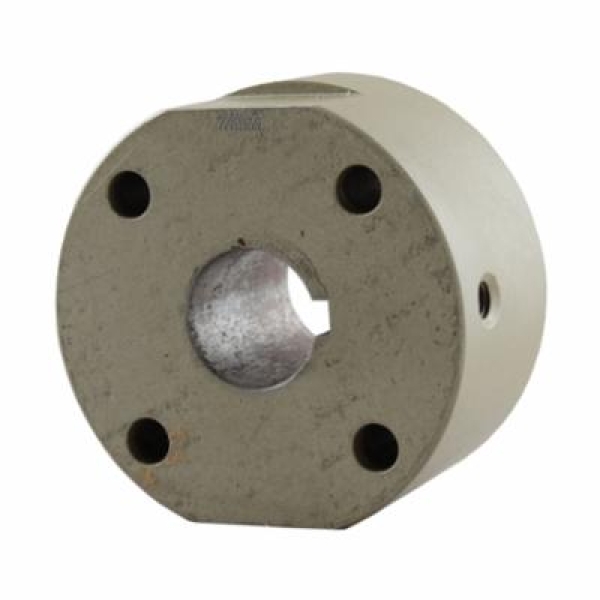

Martin Quadra-Flex® 6H 1 3/8 Bored-to-Size Type SC Spacer Coupling Hub, 06 Coupling, 1-3/8 in Dia Bore, 1.219 in L Through Bore, 2-1/2 in Dia Hub, Steel
- CP#:
- Item#: 6H 1 3/8
- Mfr#: 6H 1 3/8
- UPC: 697950276779
- No lubrication needed and easy to install
- Available in three styles, J and S flanges - Bored to size, B flanges - QD bushed and SC spacer flanges - Pump style
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin Quadra-Flex® is a proven design which offers long life, torsional flexibility, ease of installation and withstands misalignment, shock and vibration. Available in sizes 3 to 16 in bored to size, QD bushed, spacer type and plain bore for custom requirements.
Martin Quadra-Flex® Spacer Coupling Hub, Bored-to-Size Type SC, 06 Coupling, 1-3/8 in Bore Dia, 2-1/2 in Hub Dia, 5/16 x 5/32 in Keyway, 6000 rpm Maximum, 1.219 in Length Through Bore, 3/8-16 x 3/8 in Screw, Steel
SPECIFICATIONS
| Type | : | Bored-to-Size Type SC |
| Material | : | Steel |
| Maximum Speed | : | 6000 rpm |
| Screw Size | : | 3/8-16 x 3/8 in |
| Keyway Size | : | 5/16 x 5/32 in |
| Coupling Size | : | 06 |
| Length Through Bore | : | 1.219 in |
| Hub Diameter | : | 2-1/2 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10018CHN_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_4H_7_8_Catalog.pdf
