- Martin 60Q50
60Q50

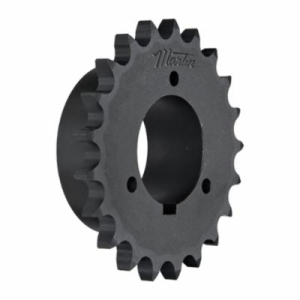

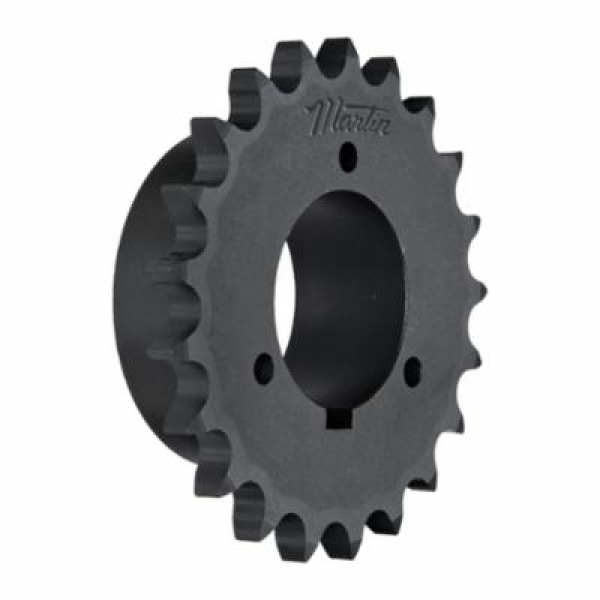

Martin 60Q50 MST® Q1 Bushed Type 4 Welded Split Single Roller Chain Sprocket, 0.75 to 2.688 in Dia Bore, 12.371 in OD, 60 Chain, 50 Teeth, 3/4 in Pitch, Steel
- CP#:
- Item#: 60Q50
- Mfr#: 60Q50
- UPC: 697950124346
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.
Martin Split Single Roller Chain Sprocket, MST® Q1 Bushed Type 4 Welded, 0.75 to 2.688 in Bore Dia, 12.371 in Outside Dia, 60 Chain, 50 Teeth, 3/4 in Pitch, 11.945 in, 4-1/4 in Hub Dia, 1/2 in W Keyway, 2-1/2 in Length Through Bore, Type Q1 Split Taper Bushing, Steel
SPECIFICATIONS
| Bushing Type | : | Type Q1 Split Taper |
| Bore Diameter | : | 0.75 to 2.688 in |
| Outside Diameter | : | 12.371 in |
| Chain Size | : | 60 |
| Number of Teeth | : | 50 |
| Pitch | : | 3/4 in |
| Material | : | Steel |
| Keyway Size | : | 1/2 in W |
| Hub Diameter | : | 4-1/4 in |
| Type | : | MST® Q1 Bushed Type 4 Welded |
| Pitch Diameter | : | 11.945 in |
| Length Through Bore | : | 2-1/2 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_50A112_Catalog.pdf
