- Martin 60L100 SD
60L100 SD

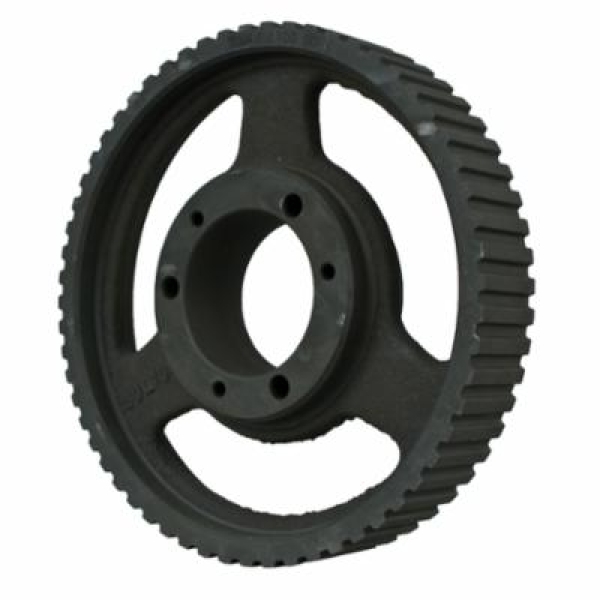

Martin 60L100 SD Spoked Type G-3 Stock Timing Pulley, 1/2 to 2 in QD® Bushed Bore, 7.132 in OD, 60 Grooves, 7.162 in Dia Pitch, 1-1/4 in W Face
- CP#:
- Item#: 60L100 SD
- Mfr#: 60L100 SD
- UPC: 697950152417
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Spoked Type G-3, QD® Bushed Bore, 1/2 to 2 in Bore Dia, 7.132 in Outside Dia, 7.162 in, 60 Grooves, 3/8 in Pitch, 1-1/4 in Face Width, SD Bushing, 1-13/16 in Overall Length, For Use With: 1 in W Type L Belt, Cast Iron
SPECIFICATIONS
| Overall Length | : | 1-13/16 in |
| Pitch | : | 3/8 in |
| Material | : | Cast Iron |
| Bushing Type | : | SD |
| Bore Diameter | : | 1/2 to 2 in |
| Bore Type | : | QD® Bushed |
| Outside Diameter | : | 7.132 in |
| Number of Grooves | : | 60 |
| Pitch Diameter | : | 7.162 in |
| Face Width | : | 1-1/4 in |
| Type | : | Spoked Type G-3 |
| Suitable For Use With | : | 1 in W Type L Belt |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10L050_Catalog.pdf
