- Martin 60H200 SF
60H200 SF

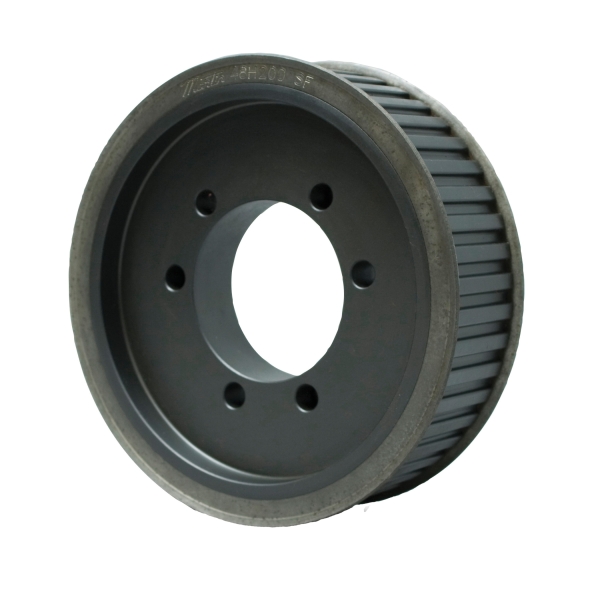

Martin 60H200 SF Type H-2 web Stock Timing Pulley, 0.5 to 2.938 in QD® Bushed Bore, 9.498 in OD, 60 Grooves, 9.549 in Dia Pitch, 2.34375 in W Face
- CP#:
- Item#: 60H200 SF
- Mfr#: 60H200 SF
- UPC: 697950152370
- Trapezoidal tooth form
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD Bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Type H-2 web, QD® Bushed Bore, 0.5 to 2.938 in Bore Dia, 9.498 in Outside Dia, 9.549 in, 60 Grooves, 1/2 in Pitch, 2.34375 in Face Width, 9/64 in Hub Projection, SF Bushing, 2-1/16 in Overall Length, For Use With: 2 in W Type H Belt, Cast Iron
SPECIFICATIONS
| Overall Length | : | 2-1/16 in |
| Pitch | : | 1/2 in |
| Material | : | Cast Iron |
| Bushing Type | : | SF |
| Bore Diameter | : | 0.5 to 2.938 in |
| Bore Type | : | QD® Bushed |
| Outside Diameter | : | 9.498 in |
| Number of Grooves | : | 60 |
| Pitch Diameter | : | 9.549 in |
| Face Width | : | 2.34375 in |
| Type | : | Type H-2 web |
| Hub Projection | : | 9/64 in |
| Suitable For Use With | : | 2 in W Type H Belt |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10XL037_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Specification_Sheet.pdf
