- Martin 6 B 160 SF
6 B 160 SF

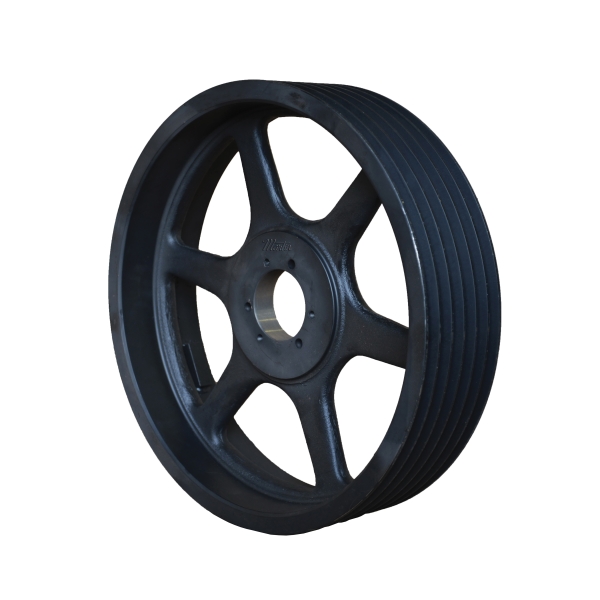

Martin 6 B 160 SF Arm/Spoke Type A-3 Conventional Stock Sheave, 1-1/16 to 2-5/16 in QD® Bushed Bore, 16.35 in OD, 6 Grooves, 16 in Dia Pitch, 4-3/4 in W Face
- CP#:
- Item#: 6 B 160 SF
- Mfr#: 6 B 160 SF
- UPC: 697950118949
- Interchangeable with other manufacturer's QD bushings
- Tolerances adhere to industry guidelines
- Precise machining and processes ensure consistent finish and high quality
- Statically balanced with maximum rim speed marked on print
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Conventional (wide/classical) sheaves are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to accept "A", "B", "C" and "D" belts.
Martin Conventional Stock Sheave, Arm/Spoke Type A-3, QD® Bushed Bore, 1-1/16 to 2-5/16 in Bore Dia, 16.35 in Outside Dia, 16 in, 6 Grooves, 4-3/4 in Face Width, SF Bushing, 4-3/4 in Overall Length, For Use With: A/B Cross Section Belts, Class 30 Gray Cast Iron
SPECIFICATIONS
| Overall Length | : | 4-3/4 in |
| Material | : | Class 30 Gray Cast Iron |
| Bushing Type | : | SF |
| Bore Diameter | : | 1-1/16 to 2-5/16 in |
| Bore Type | : | QD® Bushed |
| Outside Diameter | : | 16.35 in |
| Number of Grooves | : | 6 |
| Pitch Diameter | : | 16 in |
| Face Width | : | 4-3/4 in |
| Suitable For Use With | : | A/B Cross Section Belts |
| Type | : | Arm/Spoke Type A-3 |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10_3V_1400_E_Catalog.pdf
