Martin 50TTA30-50
Martin

Martin 50TTA30-50

loading
Martin
Email Print

50TTA30-50

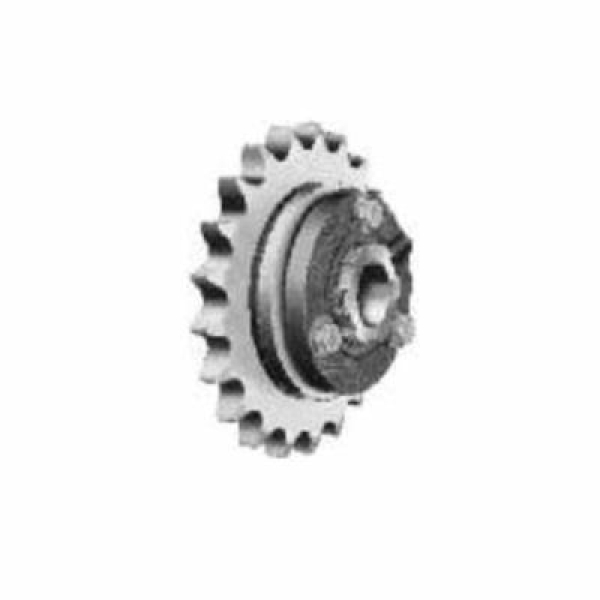

Martin 50TTA30-50 Stock Plate Sprocket With Ground Face, 50 Chain, 30 Teeth, For Use With TT50 Torque Limiter, 6.32 in OD

  • Item#: 50TTA30-50
  • Mfr#: 50TTA30-50
  • UPC: 697950077987
    • Simple in design, compact, efficient and built for long life
    • Provides low cost torque limiting service for a wide variety of applications
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Starting shock from electric motors is a major cause of maintenance of moving parts. Torque-Limiter clutches provide a cushion by slipping until the torque drops to a pre-set level. They can be set to reduce shock loads on motors and driven equipment during reversing or inching. They provide mechanical protection against breakage due to sudden overload — by slipping when the pre-set torque limit is reached. Martin can provide many tooth counts that are not listed by quickly altering stock sprockets.

Martin Stock Plate Sprocket, 50 Chain Number, 30 Teeth, For Use With: TT50 Torque Limiter, 6.32 in OD, 5.979 in Pitch Diameter, 0.343 in Thickness

SPECIFICATIONS

Pitch Diameter      :      5.979 in
Thickness      :      0.343 in
Chain Number      :      50
Number of Teeth      :      30
Suitable For Use With      :      TT50 Torque Limiter
Outside Diameter      :      6.32 in

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_35TTA35-35_Catalog.pdf
