50BS80 1 7/16

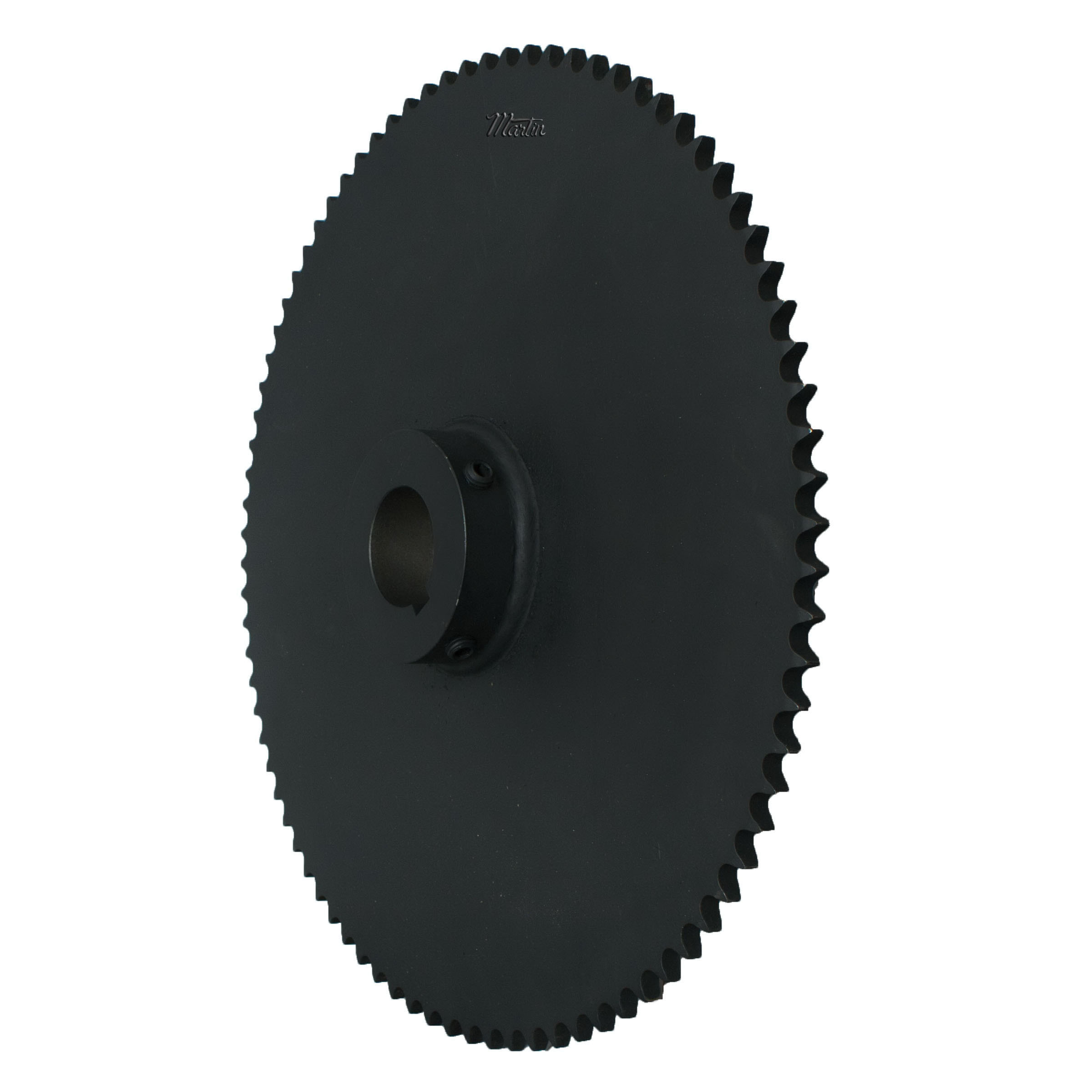

Martin 50BS80 1 7/16 Type B Bored-to-Size Single Strand Welded Roller Chain Sprocket, 1-7/16 in Dia Bore, 16.282 in OD, #50 Chain, 80 Teeth, 5/8 in Pitch, Steel
- CP#:
- Item#: 50BS80 1 7/16
- Mfr#: 50BS80 1 7/16
- UPC: 697950306384
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
- 2 set screws keyed on centerline of tooth
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
These finished bore sprockets are shaft ready and come complete with keyways and setscrews. The keyways are on center line of the tooth. Bored to size sprockets with 1/2 in bores and smaller are stocked with (2) setscrews only.
Martin Roller Chain Sprocket, Type B Bored-to-Size Single Strand Welded, 1-7/16 in Bore, 16.282 in OD, #50 Chain, 80 Teeth, 5/8 in Pitch, 15.9196 in Pitch Diameter, 4-1/4 in Diameter Hub, 3/8-16 x 3/8 in Screw, 3/8 x 3/16 in Keyway, 1-3/4 in Length Through Bore, Steel
SPECIFICATIONS
| Bore Diameter | : | 1-7/16 in |
| Outside Diameter | : | 16.282 in |
| Chain Size | : | #50 |
| Number of Teeth | : | 80 |
| Pitch | : | 5/8 in |
| Material | : | Steel |
| Keyway Size | : | 3/8 x 3/16 in |
| Type | : | Type B Bored-to-Size Single Strand Welded |
| Pitch Diameter | : | 15.9196 in |
| Hub Diameter | : | 4-1/4 in |
| Length Through Bore | : | 1-3/4 in |
| Screw Size | : | 3/8-16 x 3/8 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_815A13B_Specification_Sheet.pdf -
VIDEO LINK
https://www.youtube.com/watch?v=fSomOMNB_-Q
