- Martin 5 5V 1320 TB
5 5V 1320 TB

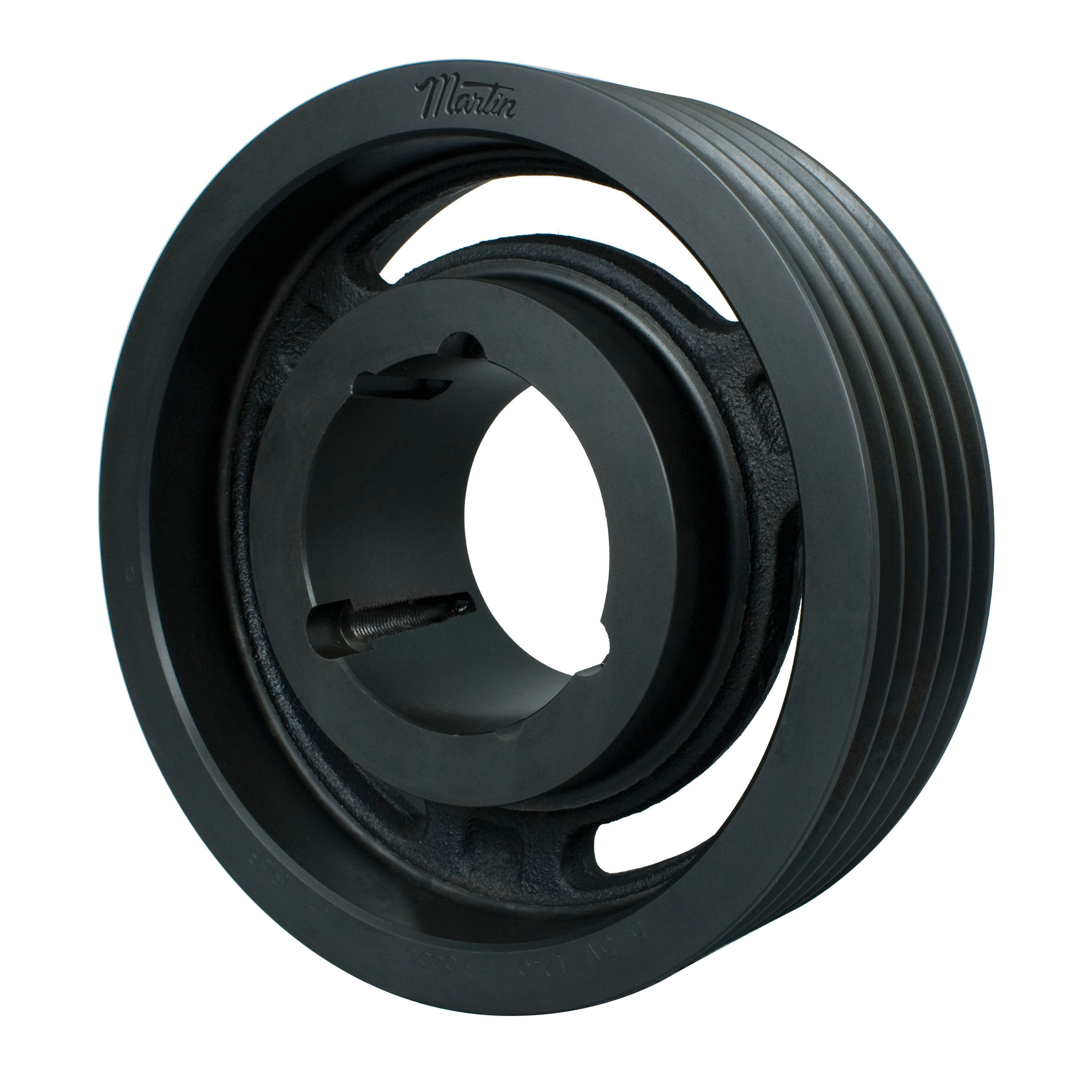

Martin Hi-Cap® 5 5V 1320 TB Type A Web Wedge Sheave, 1-1/2 to 3-1/4 in Bushed Bore, 13.2 in OD, 5 Grooves, 13.1 in Dia Pitch, 3-3/4 in W Face
- CP#:
- Item#: 5 5V 1320 TB
- Mfr#: 5 5V 1320 TB
- UPC: 697950156958
- Interchangeable with other manufacturer's taper bushings
- Class 30 gray iron
- Tolerances adhere to industry guidelines
- Precise machining and processes ensure consistent finish and high quality
- Statically balanced with maximum rim speed marked on print
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Hi-Cap® sheaves (narrow v-belts) are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-Belt sheaves to run with 3V, 5V, and 8V belts.
Martin Hi-Cap® Wedge Sheave, Type A Web, Bushed Bore, 1-1/2 to 3-1/4 in Bore, 13.2 in OD, 13.1 in Pitch Diameter, 5 Grooves, 3-3/4 in Face Width, TB 3535 Bushing, 3-1/2 in Overall Length, For Use With: 5V Cross Section Belt, Cast Iron
SPECIFICATIONS
| Overall Length | : | 3-1/2 in |
| Material | : | Cast Iron |
| Bushing Type | : | TB 3535 |
| Bore Diameter | : | 1-1/2 to 3-1/4 in |
| Bore Type | : | Bushed |
| Outside Diameter | : | 13.2 in |
| Number of Grooves | : | 5 |
| Pitch Diameter | : | 13.1 in |
| Face Width | : | 3-3/4 in |
| Suitable For Use With | : | 5V Cross Section Belt |
| Type | : | Type A Web |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_103V1060E_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_105V2360TB_Catalog.pdf -
VIDEO LINK
https://youtu.be/Uow3rcJsvzg
