4EM

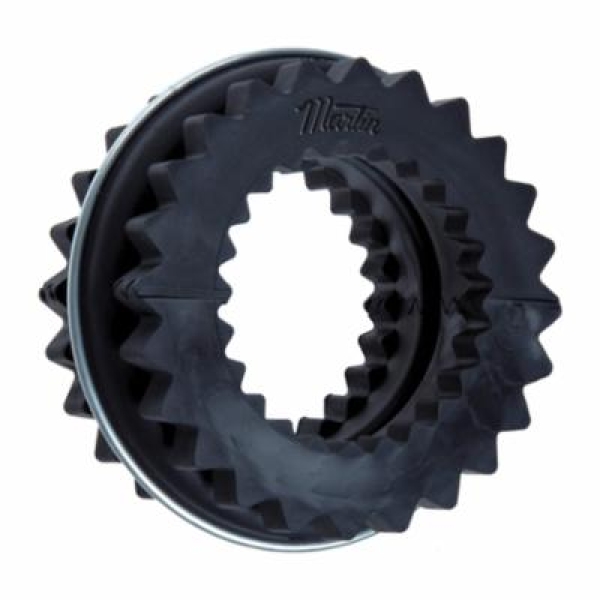

Martin Quadra-Flex® 4EM Two-Piece Coupling Sleeve With Retaining Ring, 04 Coupling, 1-1/4 in L, 2.39 in OD, 7600 rpm Max, Rubber
- CP#:
- Item#: 4EM
- Mfr#: 4EM
- UPC: 697950276267
- Sleeves available in four materials: TPR (Thermoplastic Rubber), EPDM, Neoprene and Hytrel
- Available split and un-split
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin Quadra-Flex® is a proven design which offers long life, torsional flexibility, ease of installation and withstands misalignment, shock and vibration. TPR, EPDM, Neoprene and Hytrel® sleeves are available in solid, split and semi-split construction.
Martin Quadra-Flex® Coupling Sleeve, Two-Piece, 04 Coupling, 1-1/4 in Length, 2.39 in OD, 120 in-lb Torque, 7600 rpm Maximum, -50 to 275 deg F, Rubber, Black
SPECIFICATIONS
| Type | : | Two-Piece |
| Outside Diameter | : | 2.39 in |
| Material | : | Rubber |
| Temperature Rating | : | -50 to 275 deg F |
| Torque Rating | : | 120 in-lb |
| Finish | : | Black |
| Coupling Size | : | 04 |
| Length | : | 1-1/4 in |
| Maximum Speed | : | 7600 rpm |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10018CHN_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_4H_7_8_Catalog.pdf
