40Q80

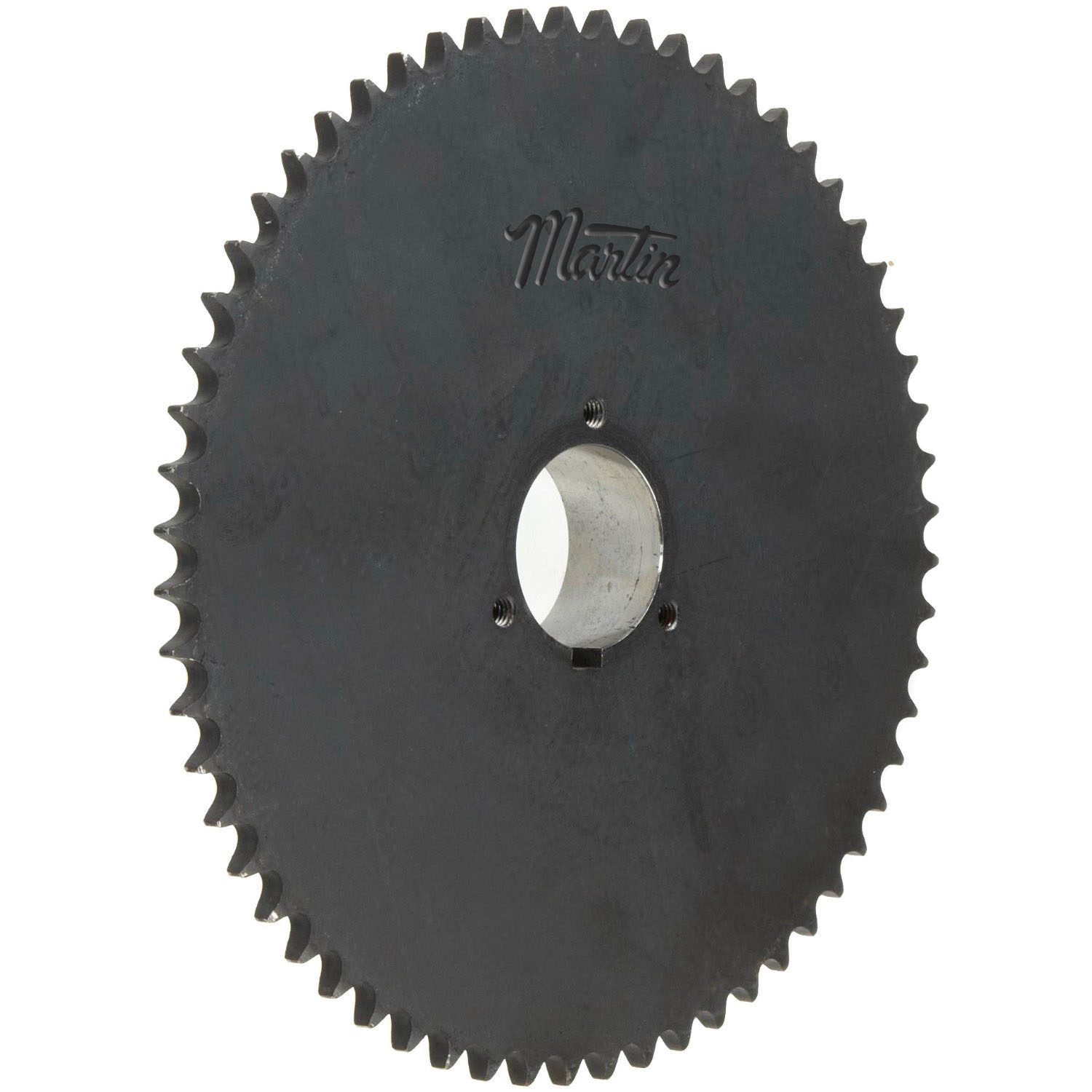

Martin 40Q80 Type 4 Single Strand Welded Bushed Roller Chain Sprocket, 0.75 to 2.688 in Dia Bore, 13.026 in OD, #40 Chain, 80 Teeth, 1/2 in Pitch, Steel
- CP#:
- Item#: 40Q80
- Mfr#: 40Q80
- UPC: 697950137735
- Interchangeable with other manufacturer's split-taper bushings
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
- Bores are concentric to pitch line, minimizing run out
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.
Martin Roller Chain Sprocket, Type 4 Single Strand Welded Bushed, 0.75 to 2.688 in Bore, 13.026 in OD, #40 Chain, 80 Teeth, 1/2 in Pitch, 12.7357 in Pitch Diameter, 4-1/4 in Diameter Hub, 1/2 in Keyway, 1-3/4 in Length Through Bore, MST® Q1 Bushing, Steel
SPECIFICATIONS
| Bushing Type | : | MST® Q1 |
| Bore Diameter | : | 0.75 to 2.688 in |
| Outside Diameter | : | 13.026 in |
| Chain Size | : | #40 |
| Number of Teeth | : | 80 |
| Pitch | : | 1/2 in |
| Material | : | Steel |
| Keyway Size | : | 1/2 in |
| Hub Diameter | : | 4-1/4 in |
| Type | : | Type 4 Single Strand Welded Bushed |
| Pitch Diameter | : | 12.7357 in |
| Length Through Bore | : | 1-3/4 in |
