35SH84

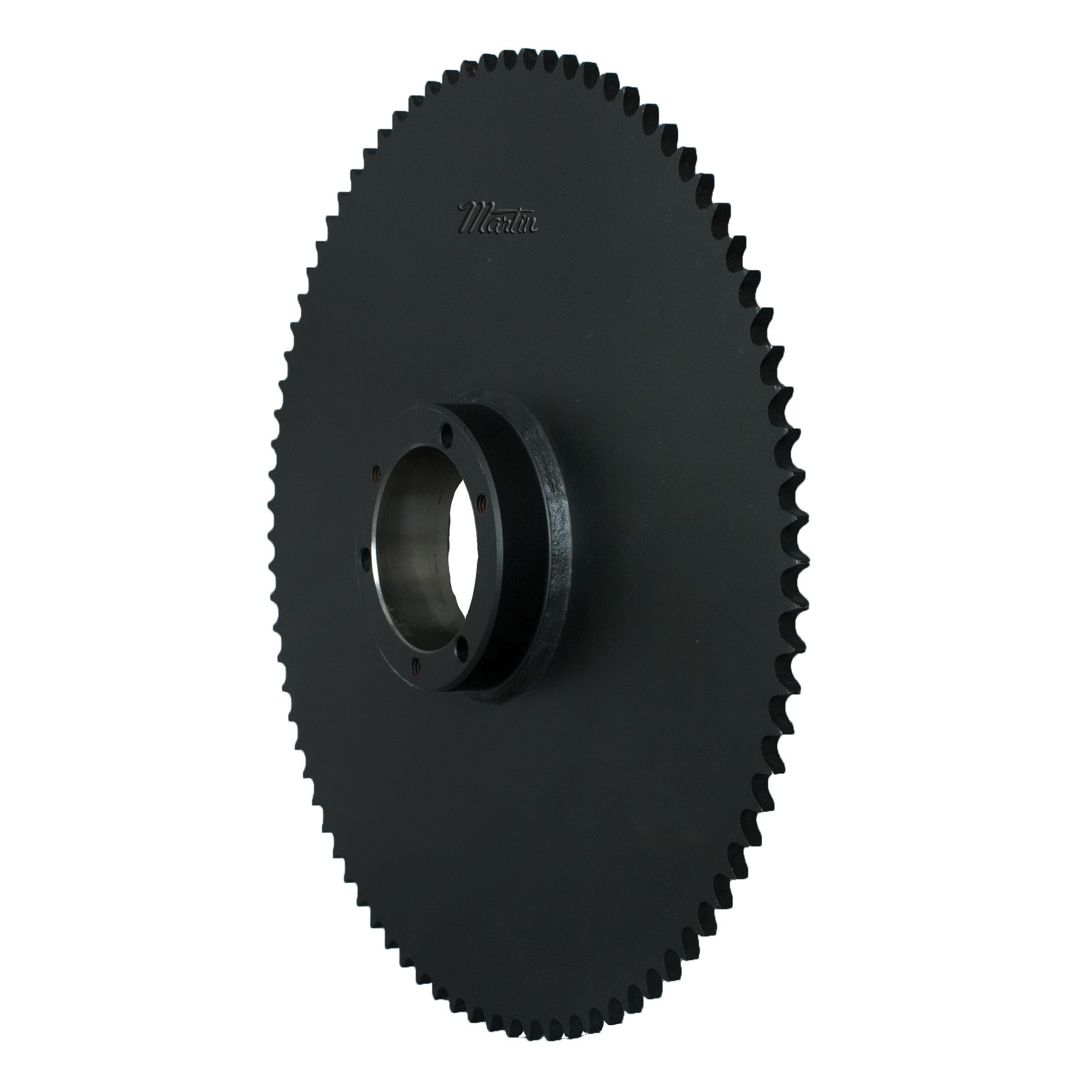

Martin 35SH84 Type B Single Strand Welded Bushed Roller Chain Sprocket, 0.5 to 1.688 in Dia Bore, 10.247 in OD, #35 Chain, 84 Teeth, 3/8 in Pitch, Steel
- CP#:
- Item#: 35SH84
- Mfr#: 35SH84
- UPC: 697950002736
- Interchangeable with other manufacturer's QD® bushings
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
- Bores are concentric to pitch line, minimizing run out
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
QD (quick detachable) is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.
Martin Roller Chain Sprocket, Type B Single Strand Welded Bushed, 0.5 to 1.688 in Bore, 10.247 in OD, #35 Chain, 84 Teeth, 3/8 in Pitch, 10.0291 in Pitch Diameter, 3 in Diameter Hub, 0.812 in Length Through Bore, QD® SH Bushing, Steel
SPECIFICATIONS
| Bushing Type | : | QD® SH |
| Bore Diameter | : | 0.5 to 1.688 in |
| Outside Diameter | : | 10.247 in |
| Chain Size | : | #35 |
| Number of Teeth | : | 84 |
| Pitch | : | 3/8 in |
| Material | : | Steel |
| Type | : | Type B Single Strand Welded Bushed |
| Pitch Diameter | : | 10.0291 in |
| Hub Diameter | : | 3 in |
| Length Through Bore | : | 0.812 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_815A13B_Specification_Sheet.pdf -
