35H22

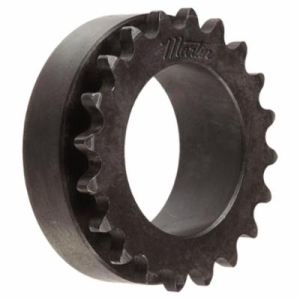

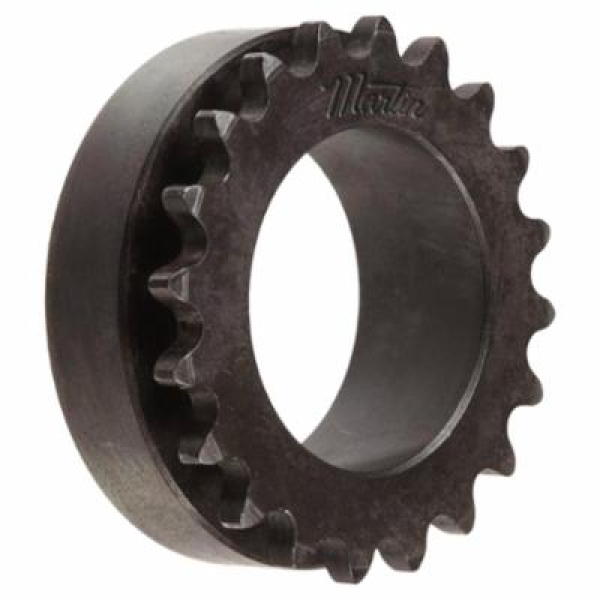

Martin 35H22 MST® H Bushed Solid Type 3 Split Single Roller Chain Sprocket With Recess Groove, 3/8 to 1-1/2 in Dia Bore, 2.833 in OD, 35 Chain, 22 Teeth, 3/8 in Pitch, Steel
- CP#:
- Item#: 35H22
- Mfr#: 35H22
- UPC: 697950097312
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.
Martin Split Single Roller Chain Sprocket, MST® H Bushed Solid Type 3, 3/8 to 1-1/2 in Bore Dia, 2.833 in Outside Dia, 35 Chain, 22 Teeth, 3/8 in Pitch, 2.635 in, 2.51 in Hub Dia, 1-1/4 in Length Through Bore, Type H Split Taper Bushing, Steel
SPECIFICATIONS
| Bushing Type | : | Type H Split Taper |
| Bore Diameter | : | 3/8 to 1-1/2 in |
| Outside Diameter | : | 2.833 in |
| Chain Size | : | 35 |
| Number of Teeth | : | 22 |
| Pitch | : | 3/8 in |
| Material | : | Steel |
| Hub Diameter | : | 2.51 in |
| Type | : | MST® H Bushed Solid Type 3 |
| Pitch Diameter | : | 2.635 in |
| Length Through Bore | : | 1-1/4 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_50A112_Catalog.pdf
