Martin 3 3V 650 TB
Martin

Martin 3 3V 650 TB

loading
Martin
Email Print

3 3V 650 TB

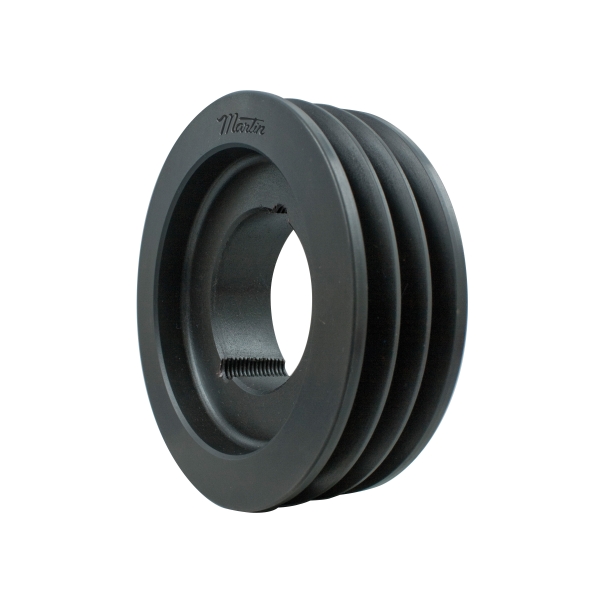

Martin Hi-Cap® 3 3V 650 TB Solid Type B-1 Wedge Stock Sheave, 1/2 to 2-1/2 in TB Bushed Bore, 6-1/2 in OD, 3 Grooves, 6.45 in Dia Pitch, 1-1/2 in W Face

  • Item#: 3 3V 650 TB
  • Mfr#: 3 3V 650 TB
  • UPC: 697950155098
    • Interchangeable with other manufacturer's taper bushings
    • Tolerances adhere to industry guidelines
    • Precise machining and processes ensure consistent finish and high quality
    • Statically balanced with maximum rim speed marked on print
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V and 8V belts.

Martin Hi-Cap® Wedge Stock Sheave, Solid Type B-1, TB Bushed Bore, 1/2 to 2-1/2 in Bore, 6-1/2 in OD, 6.45 in Pitch Diameter, 3 Grooves, 1-1/2 in Face Width, 2517 Bushing, 1.91 in Overall Length, For Use With: 3V-Cross Section V-Belts, Steel

SPECIFICATIONS

Overall Length      :      1.91 in
Material      :      Steel
Bushing Type      :      2517
Bore Diameter      :      1/2 to 2-1/2 in
Bore Type      :      TB Bushed
Outside Diameter      :      6-1/2 in
Number of Grooves      :      3
Pitch Diameter      :      6.45 in
Face Width      :      1-1/2 in
Suitable For Use With      :      3V-Cross Section V-Belts
Type      :      Solid Type B-1

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10_3V_650_TB_Catalog.pdf
