Martin 3 3V 500 TB
Martin

Martin 3 3V 500 TB

loading
Martin
Email Print

3 3V 500 TB

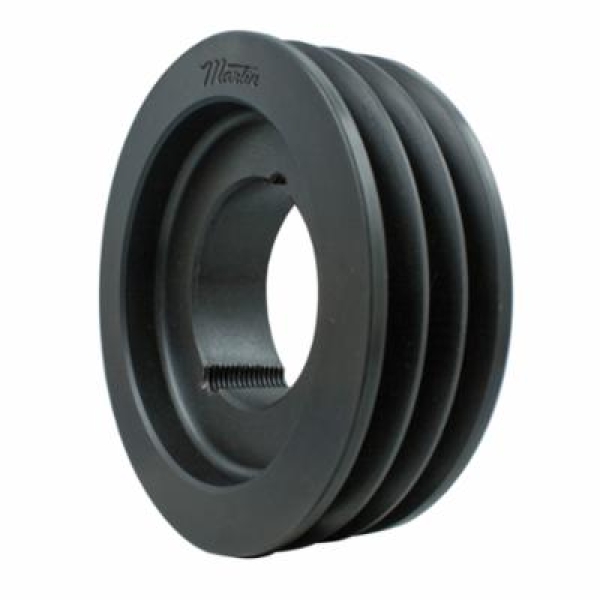

Martin Hi-Cap® 3 3V 500 TB Solid Wedge Stock Sheave, 1/2 to 1-5/8 in TB Bushed Bore, 5 in OD, 3 Grooves, 4.95 in Dia Pitch, 1-1/2 in W Face

  • Item#: 3 3V 500 TB
  • Mfr#: 3 3V 500 TB
  • UPC: 697950155050
    • Class 30 Gray Iron
    • Tolerances adhere to industry guidelines
    • Precise machining and processes ensure consistent finish and high quality
    • Statically balanced with maximum rim speed marked on print
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 65 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 50 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V, and 8V belts.

Martin Hi-Cap® Wedge Stock Sheave, Solid, TB Bushed Bore, 1/2 to 1-5/8 in Bore, 5 in OD, 4.95 in Pitch Diameter, 3 Grooves, 1-1/2 in Face Width, 1610 Bushing, For Use With: 3V-Cross Section V-Belts, Steel

SPECIFICATIONS

Material      :      Steel
Bushing Type      :      1610
Bore Diameter      :      1/2 to 1-5/8 in
Bore Type      :      TB Bushed
Outside Diameter      :      5 in
Number of Grooves      :      3
Pitch Diameter      :      4.95 in
Face Width      :      1-1/2 in
Suitable For Use With      :      3V-Cross Section V-Belts
Type      :      Solid

DOCUMENTS

  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_3_3V_14_TB_Specification_Sheet.pdf
