3 3V 475 SDS

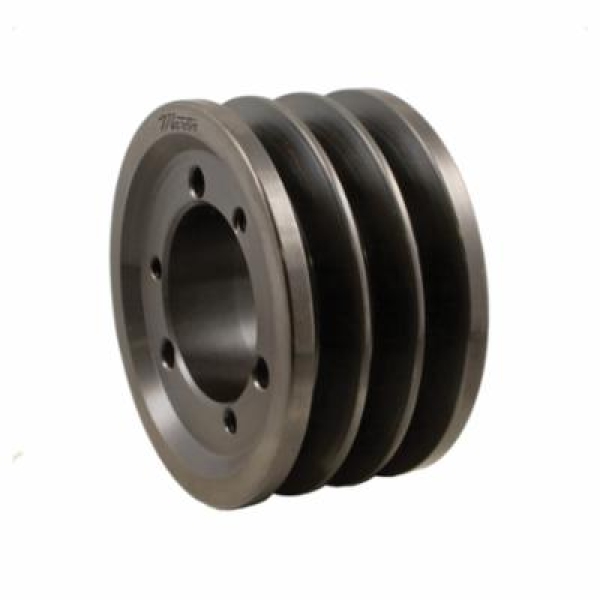

Martin Hi-Cap® 3 3V 475 SDS Solid Type A-1 Wedge Stock Sheave, 1/2 to 2 in QD® Bushed Bore, 4-3/4 in OD, 3 Grooves, 4.7 in Dia Pitch, 1-1/2 in W Face
- CP#:
- Item#: 3 3V 475 SDS
- Mfr#: 3 3V 475 SDS
- UPC: 697950113845
- Class 30 Gray Iron
- Tolerances adhere to industry guidelines
- Precise machining and processes ensure consistent finish and high quality
- Statically balanced with maximum rim speed marked on print
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 65 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V, and 8V belts.
Martin Hi-Cap® Wedge Stock Sheave, Solid Type A-1, QD® Bushed Bore, 1/2 to 2 in Bore, 4-3/4 in OD, 4.7 in Pitch Diameter, 3 Grooves, 1-1/2 in Face Width, SDS Bushing, 1-1/2 in Overall Length, For Use With: 3V-Cross Section V-Belts, Steel
SPECIFICATIONS
| Overall Length | : | 1-1/2 in |
| Material | : | Steel |
| Bushing Type | : | SDS |
| Bore Diameter | : | 1/2 to 2 in |
| Bore Type | : | QD® Bushed |
| Outside Diameter | : | 4-3/4 in |
| Number of Grooves | : | 3 |
| Pitch Diameter | : | 4.7 in |
| Face Width | : | 1-1/2 in |
| Suitable For Use With | : | 3V-Cross Section V-Belts |
| Type | : | Solid Type A-1 |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_3_5V_710_SF_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_3_5V_710_SF_Specification_Sheet.pdf
