26H200

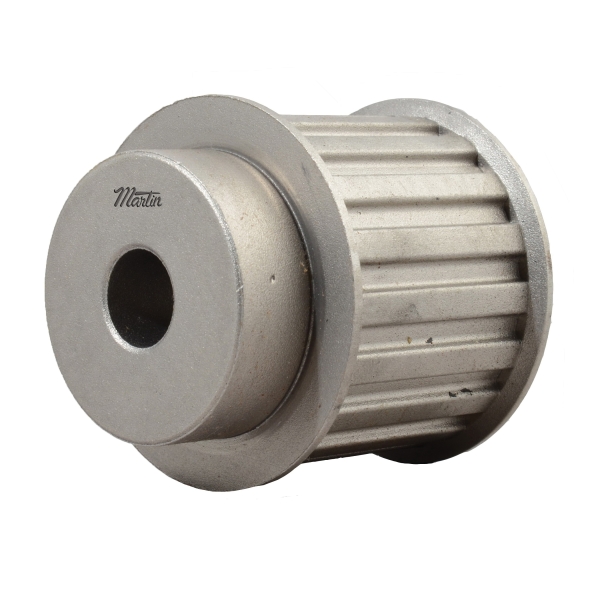

Martin 26H200 Solid Type DF-1 Stock Timing Pulley, 1 to 2-1/2 in Minimum Plain/Reborable Bore, 4.0865 in OD, 26 Grooves, 4.138 in Dia Pitch, 2.34375 in W Face
- CP#:
- Item#: 26H200
- Mfr#: 26H200
- UPC: 697950151670
- Trapezoidal tooth form
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD Bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Solid Type DF-1, Minimum Plain/Reborable Bore, 1 to 2-1/2 in Bore Dia, 4.0865 in Outside Dia, 4.138 in, 26 Grooves, 1/2 in Pitch, 2.34375 in Face Width, 4.369 in Flange Dia, 3-1/2 in Hub Dia, 1-1/8 in Hub Projection, 3-15/32 in Overall Length, For Use With: 2 in W Type H Belt, Steel
SPECIFICATIONS
| Overall Length | : | 3-15/32 in |
| Pitch | : | 1/2 in |
| Material | : | Steel |
| Bore Diameter | : | 1 to 2-1/2 in |
| Bore Type | : | Minimum Plain/Reborable |
| Outside Diameter | : | 4.0865 in |
| Number of Grooves | : | 26 |
| Pitch Diameter | : | 4.138 in |
| Face Width | : | 2.34375 in |
| Hub Diameter | : | 3-1/2 in |
| Type | : | Solid Type DF-1 |
| Hub Projection | : | 1-1/8 in |
| Flange Diameter | : | 4.369 in |
| Suitable For Use With | : | 2 in W Type H Belt |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10XL037_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Specification_Sheet.pdf
