24L100 SH

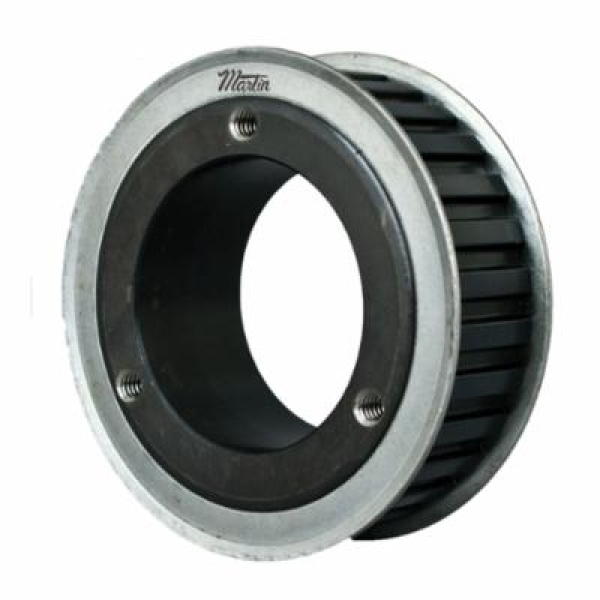

Martin 24L100 SH Solid Type EF-1 Stock Timing Pulley, 0.5 to 1.688 in QD® Bushed Bore, 2.835 in OD, 24 Grooves, 2.865 in Dia Pitch, 1-1/4 in W Face
- CP#:
- Item#: 24L100 SH
- Mfr#: 24L100 SH
- UPC: 697950151625
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Solid Type EF-1, QD® Bushed Bore, 0.5 to 1.688 in Bore Dia, 2.835 in Outside Dia, 2.865 in, 24 Grooves, 3/8 in Pitch, 1-1/4 in Face Width, 3-1/8 in Flange Dia, SH Bushing, 1-5/16 in Overall Length, For Use With: 1 in W Type L Belt, Steel
SPECIFICATIONS
| Overall Length | : | 1-5/16 in |
| Pitch | : | 3/8 in |
| Material | : | Steel |
| Bushing Type | : | SH |
| Bore Diameter | : | 0.5 to 1.688 in |
| Bore Type | : | QD® Bushed |
| Outside Diameter | : | 2.835 in |
| Number of Grooves | : | 24 |
| Pitch Diameter | : | 2.865 in |
| Face Width | : | 1-1/4 in |
| Type | : | Solid Type EF-1 |
| Flange Diameter | : | 3-1/8 in |
| Suitable For Use With | : | 1 in W Type L Belt |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10L050_Catalog.pdf
