20TSMAR

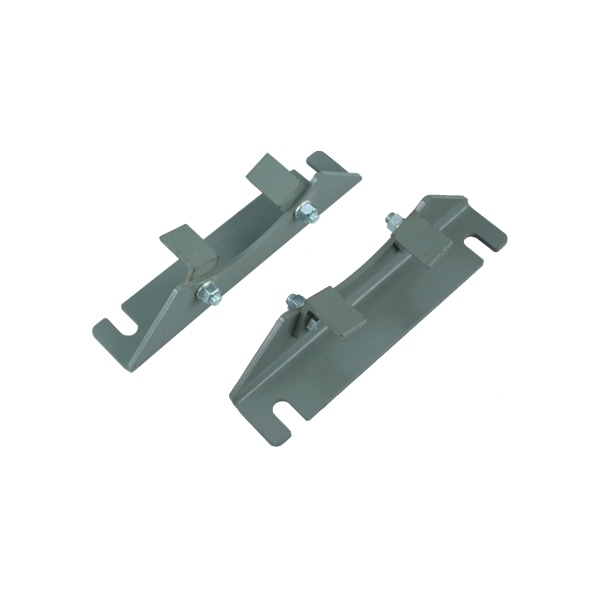

Martin 20TS Trough Saddle, For Use With 20 in Trough Conveyor, 3/4 in Mounting Dia Bolt, 2-1/4 in W Support Flange, 19-1/4 in Mounting Bolt Centers, 2-1/4 in Foot Mounting Location, 15 in Height to Trough Centerline, 2 Mounting Bolts, Steel
- CP#:
- Item#: 20TSMAR
- Mfr#: 20TSMAR
- UPC: 697950109602
- They align and fasten the trough to the floor or an existing structure
- Laser cut flat pieces to ensure consistent finish and high quality
- Slotted mounting holes to help accommodate installation variances
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin Trough Saddle, For Use With: 20 in Trough Conveyor, 3/4 in Dia Mounting Bolt, 2-1/4 in W Support Flange, 19-1/4 in Mounting Bolt Centers, 2-1/4 in Foot Mounting Location, 15 in Height to Trough Centerline, 2 Mounting Bolts, Steel, 3-3/4 in L x 22-3/4 in W x 1/4 in THK
SPECIFICATIONS
| Material | : | Steel |
| Dimensions | : | 3-3/4 in L x 22-3/4 in W x 1/4 in THK |
| Suitable For Use With | : | 20 in Trough Conveyor |
| Specifications | : | 3/4 in Dia Mounting Bolt, 2-1/4 in W Support Flange, 19-1/4 in Mounting Bolt Centers, 2-1/4 in Foot Mounting Location, 15 in Height to Trough Centerline, 2 Mounting Bolts |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_CSFP2_Catalog.pdf
