20L100 JA

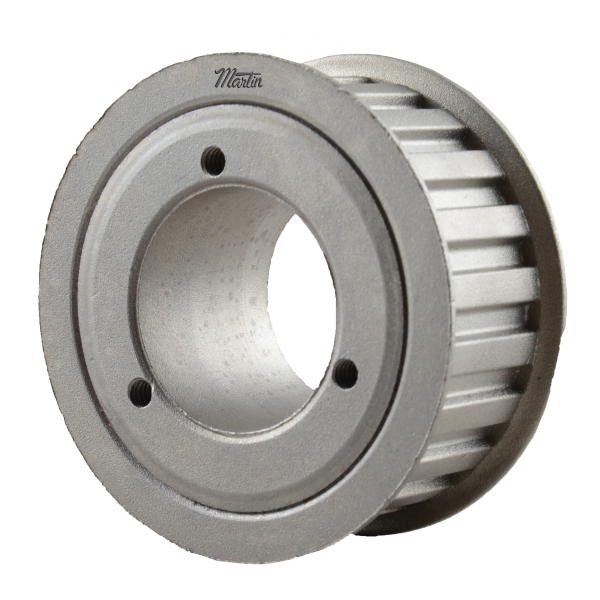

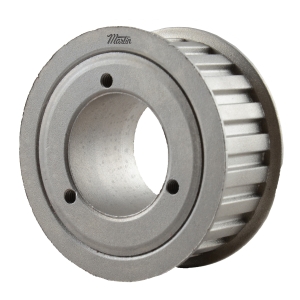

Martin 20L100 JA Solid Type EF-1 Stock Timing Pulley, 3/4 to 1-1/4 in QD® Bushed Bore, 2.357 in OD, 20 Grooves, 2.387 in Dia Pitch, 1.062 in W Face
- CP#:
- Item#: 20L100 JA
- Mfr#: 20L100 JA
- UPC: 697950151328
- Trapezoidal tooth form
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD Bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Solid Type EF-1, QD® Bushed Bore, 3/4 to 1-1/4 in Bore Dia, 2.357 in Outside Dia, 2.387 in, 20 Grooves, 3/8 in Pitch, 1.062 in Face Width, 1-1/4 in Flange Dia, 11/16 in Hub Projection, JA Bushing, 1-1/16 in Overall Length, For Use With: 1 in W Type L Belt, Steel
SPECIFICATIONS
| Overall Length | : | 1-1/16 in |
| Pitch | : | 3/8 in |
| Material | : | Steel |
| Bushing Type | : | JA |
| Bore Diameter | : | 3/4 to 1-1/4 in |
| Bore Type | : | QD® Bushed |
| Outside Diameter | : | 2.357 in |
| Number of Grooves | : | 20 |
| Pitch Diameter | : | 2.387 in |
| Face Width | : | 1.062 in |
| Type | : | Solid Type EF-1 |
| Hub Projection | : | 11/16 in |
| Flange Diameter | : | 1-1/4 in |
| Suitable For Use With | : | 1 in W Type L Belt |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10XL037_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Specification_Sheet.pdf
