20H100

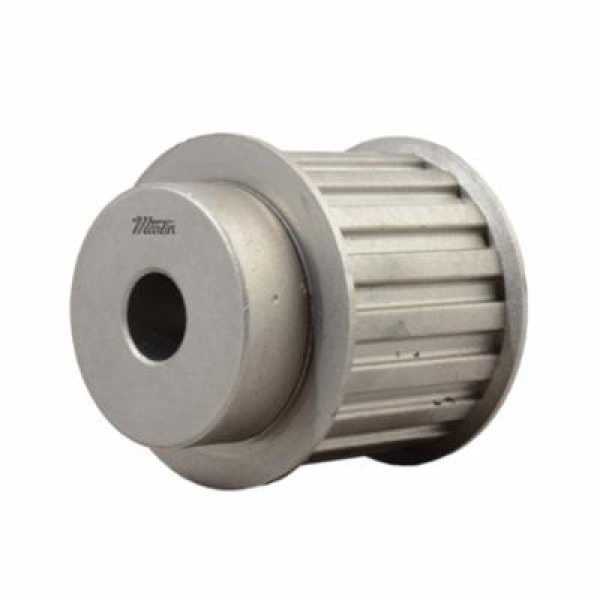

Martin 20H100 Solid Type DF-1 Stock Timing Pulley, 5/8 to 1-5/8 in Minimum Plain/Reborable Bore, 3.129 in OD, 20 Grooves, 3.183 in Dia Pitch, 1.062 in W Face
- CP#:
- Item#: 20H100
- Mfr#: 20H100
- UPC: 697950151212
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Solid Type DF-1, Minimum Plain/Reborable Bore, 5/8 to 1-5/8 in Bore Dia, 3.129 in Outside Dia, 3.183 in, 20 Grooves, 1/2 in Pitch, 1.062 in Face Width, 3.415 in Flange Dia, 2-1/2 in Hub Dia, 7/8 in Hub Projection, 2-3/16 in Overall Length, For Use With: 1 in W Type H Belt, Steel
SPECIFICATIONS
| Overall Length | : | 2-3/16 in |
| Pitch | : | 1/2 in |
| Material | : | Steel |
| Bore Diameter | : | 5/8 to 1-5/8 in |
| Bore Type | : | Minimum Plain/Reborable |
| Outside Diameter | : | 3.129 in |
| Number of Grooves | : | 20 |
| Pitch Diameter | : | 3.183 in |
| Face Width | : | 1.062 in |
| Hub Diameter | : | 2-1/2 in |
| Type | : | Solid Type DF-1 |
| Hub Projection | : | 7/8 in |
| Flange Diameter | : | 3.415 in |
| Suitable For Use With | : | 1 in W Type H Belt |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10L050_Catalog.pdf
