2 3V 650 SDS

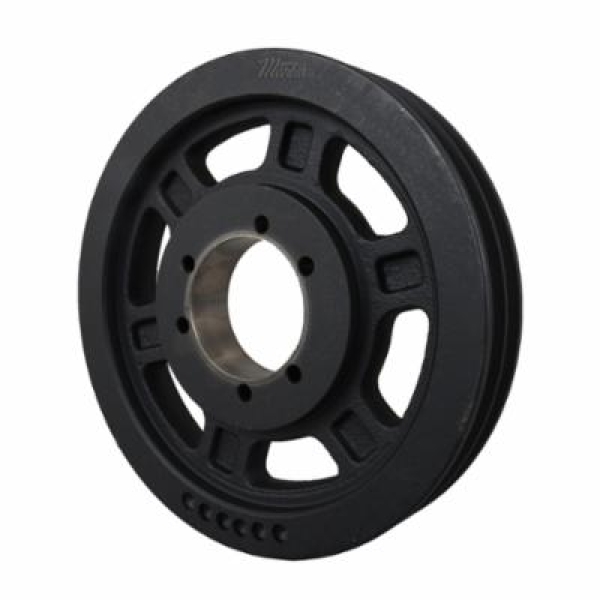

Martin Hi-Cap® 2 3V 650 SDS Arm/Spoke Type D-3 Wedge Stock Sheave, 1/2 to 2 in QD® Bushed Bore, 6-1/2 in OD, 2 Grooves, 6.45 in Dia Pitch, 1.094 in W Face
- CP#:
- Item#: 2 3V 650 SDS
- Mfr#: 2 3V 650 SDS
- UPC: 697950106328
- Class 30 Gray Iron
- Tolerances adhere to industry guidelines
- Precise machining and processes ensure consistent finish and high quality
- Statically balanced with maximum rim speed marked on print
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V, and 8V belts.
Martin Hi-Cap® Wedge Stock Sheave, Arm/Spoke Type D-3, QD® Bushed Bore, 1/2 to 2 in Bore, 6-1/2 in OD, 6.45 in Pitch Diameter, 2 Grooves, 1.094 in Face Width, SDS Bushing, 1.40625 in Overall Length, For Use With: 3V-Cross Section V-Belts, Steel
SPECIFICATIONS
| Overall Length | : | 1.40625 in |
| Material | : | Steel |
| Bushing Type | : | SDS |
| Bore Diameter | : | 1/2 to 2 in |
| Bore Type | : | QD® Bushed |
| Outside Diameter | : | 6-1/2 in |
| Number of Grooves | : | 2 |
| Pitch Diameter | : | 6.45 in |
| Face Width | : | 1.094 in |
| Suitable For Use With | : | 3V-Cross Section V-Belts |
| Type | : | Arm/Spoke Type D-3 |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_3_5V_710_SF_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_3_5V_710_SF_Specification_Sheet.pdf
