18XH200

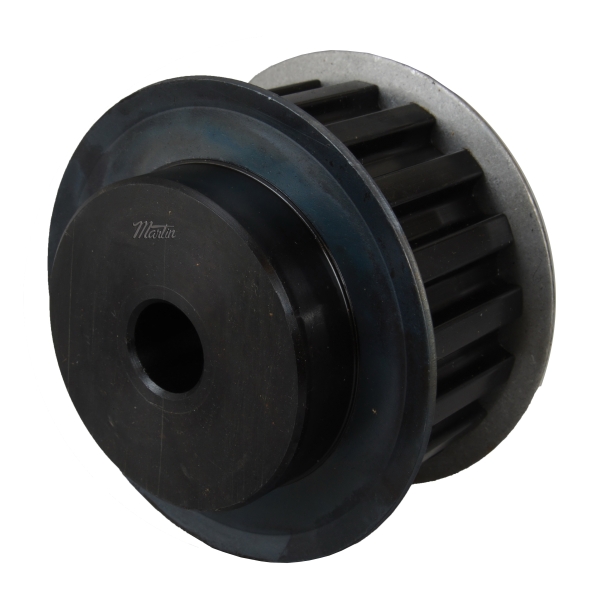

Martin 18XH200 Solid Type DF-1 Stock Timing Pulley, 1 to 2-5/8 in Minimum Plain/Reborable Bore, 4.9055 in OD, 18 Grooves, 5.013 in Dia Pitch, 2-9/16 in W Face
- CP#:
- Item#: 18XH200
- Mfr#: 18XH200
- UPC: 697950105567
- Trapezoidal tooth form
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD Bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Solid Type DF-1, Minimum Plain/Reborable Bore, 1 to 2-5/8 in Bore Dia, 4.9055 in Outside Dia, 5.013 in, 18 Grooves, 7/8 in Pitch, 2-9/16 in Face Width, 5.562 in Flange Dia, 3-11/16 in Hub Dia, 7/8 in Hub Projection, 3-7/16 in Overall Length, For Use With: 2 in W Type X Belt, Steel
SPECIFICATIONS
| Overall Length | : | 3-7/16 in |
| Pitch | : | 7/8 in |
| Material | : | Steel |
| Bore Diameter | : | 1 to 2-5/8 in |
| Bore Type | : | Minimum Plain/Reborable |
| Outside Diameter | : | 4.9055 in |
| Number of Grooves | : | 18 |
| Pitch Diameter | : | 5.013 in |
| Face Width | : | 2-9/16 in |
| Hub Diameter | : | 3-11/16 in |
| Type | : | Solid Type DF-1 |
| Hub Projection | : | 7/8 in |
| Flange Diameter | : | 5.562 in |
| Suitable For Use With | : | 2 in W Type X Belt |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10XL037_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Specification_Sheet.pdf
