18SF616-R

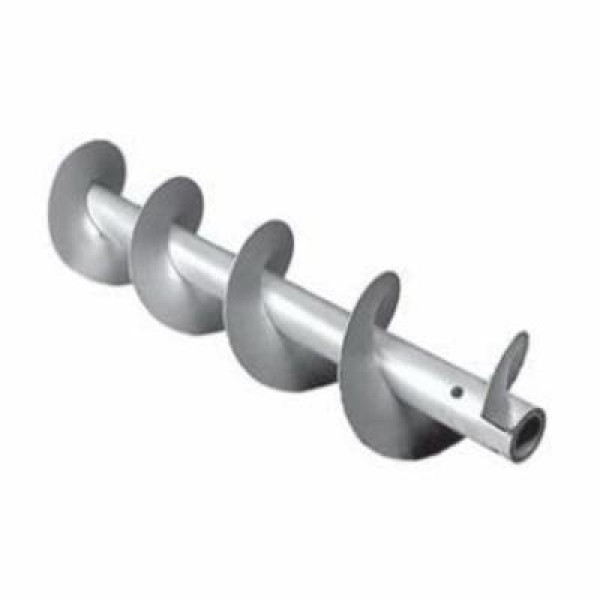

Martin 18SF616-R Conveyor Screw With Buttweld Flighting, 18 in Dia x 141 in L, Steel
- CP#:
- Item#: 18SF616-R
- Mfr#: 18SF616-R
- UPC: 697950130408
- Pitch can be varied on a MTO basis
- Left Hand available
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sectional Flights are individual flights or turns blanked from steel plates and formed into a spiral or helix of the desired diameter and pitch to fit conveyor screw pipes. The flights are butt welded together to form a continuous conveyor screw. Modifications can be furnished, such as, fabrication from various metals, different flight thicknesses, other diameters and pitches. The butt weld flight is the same thickness in the full cross section. Stock sectional flight screw diameter from 6 in - 24 in and thickness from 3/16 in – ½ in. Right hand flight helix wraps around the pipe in a clockwise direction.
Martin Conveyor Screw, 18 in Dia, 141 in Length, Steel, Right Hand Sectional Flight Type
SPECIFICATIONS
| Material | : | Steel |
| Flight Type | : | Right Hand Sectional |
| Diameter | : | 18 in |
| Length | : | 141 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10CH2203_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10H306-R_Catalog.pdf
