Martin 16H100 JA
Martin

Martin 16H100 JA

loading
Martin
Email Print

16H100 JA

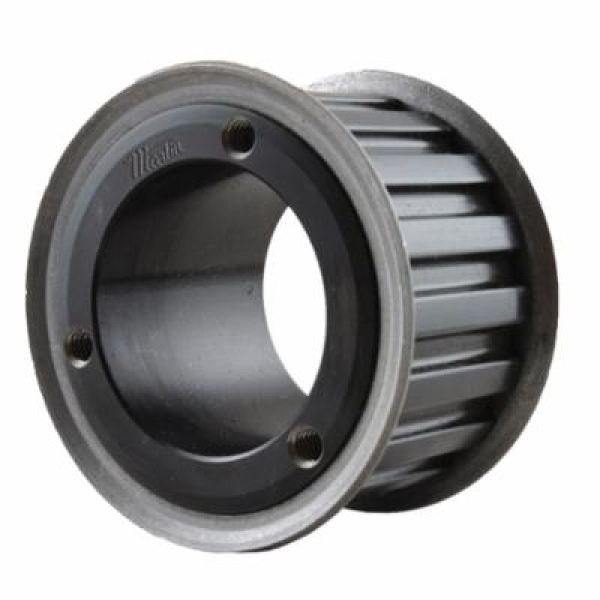

Martin 16H100 JA Solid Type EF-1 Stock Timing Pulley, 1/2 to 2-3/4 in QD® Bushed Bore, 2.492 in OD, 16 Grooves, 2.546 in Dia Pitch, 1.062 in W Face

  • Item#: 16H100 JA
  • Mfr#: 16H100 JA
  • UPC: 697950150987
    • Exhibit many of the best features of chain drives and belt drives
    • Non-slip toothed drive with no metal to metal contact
    • No lubrication needed
    • Precise machining and processes ensure consistent finish and high quality
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.

Martin Stock Timing Pulley, Solid Type EF-1, QD® Bushed Bore, 1/2 to 2-3/4 in Bore Dia, 2.492 in Outside Dia, 2.546 in, 16 Grooves, 1/2 in Pitch, 1.062 in Face Width, 2.779 in Flange Dia, JA Bushing, 1-1/16 in Overall Length, For Use With: 1 in W Type H Belt, Steel

SPECIFICATIONS

Overall Length      :      1-1/16 in
Pitch      :      1/2 in
Material      :      Steel
Bushing Type      :      JA
Bore Diameter      :      1/2 to 2-3/4 in
Bore Type      :      QD® Bushed
Outside Diameter      :      2.492 in
Number of Grooves      :      16
Pitch Diameter      :      2.546 in
Face Width      :      1.062 in
Type      :      Solid Type EF-1
Flange Diameter      :      2.779 in
Suitable For Use With      :      1 in W Type H Belt

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10L050_Catalog.pdf
