16A19

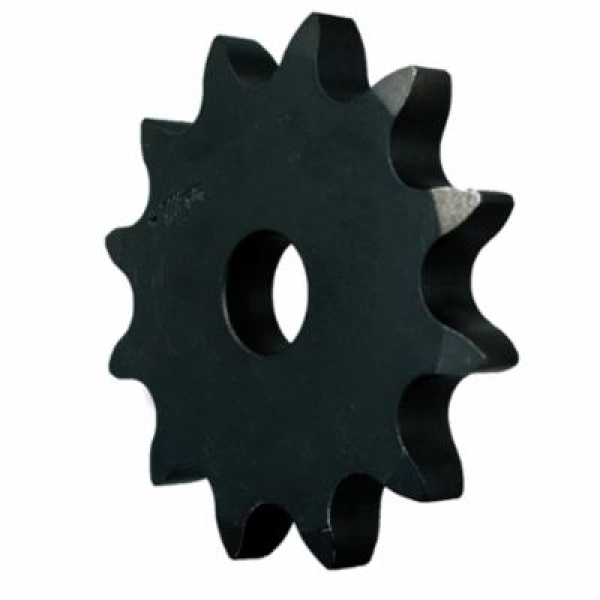

Martin 16A19 Metric Stock Bore Solid Type A Simplex Roller Chain Sprocket, 24 mm Dia Bore, 170.194 mm OD, 16B-1 Chain, 19 Teeth, 25.4 mm Pitch, Steel
- CP#:
- Item#: 16A19
- Mfr#: 16A19
- UPC: 697950402147
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Metric A plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.
Martin Simplex Roller Chain Sprocket, Metric Stock Bore Solid Type A, 24 mm Bore Dia, 170.194 mm Outside Dia, 16B-1 Chain, 19 Teeth, 25.4 mm Pitch, 154.319 mm, 108 mm Hub Dia, 16.18 mm Length Through Bore, Steel
SPECIFICATIONS
| Bore Diameter | : | 24 mm |
| Outside Diameter | : | 170.194 mm |
| Chain Size | : | 16B-1 |
| Number of Teeth | : | 19 |
| Pitch | : | 25.4 mm |
| Material | : | Steel |
| Pitch Diameter | : | 154.319 mm |
| Length Through Bore | : | 16.18 mm |
| Hub Diameter | : | 108 mm |
| Type | : | Metric Stock Bore Solid Type A |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_12A15_Catalog.pdf
