160BTB18H

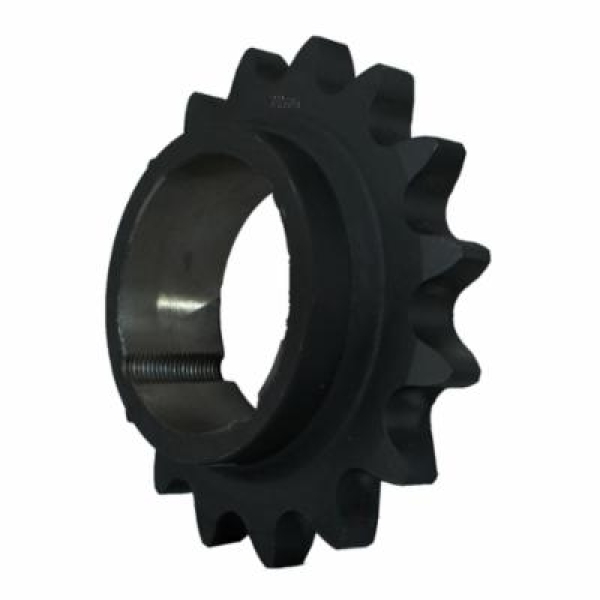

Martin Saber Tooth® 160BTB18H Taper Bushed Type B Single Pitch Roller Chain Sprocket With Hardened Teeth, 12.543 in OD, #160 Chain, 18 Teeth, 2 in Pitch, Steel
- CP#:
- Item#: 160BTB18H
- Mfr#: 160BTB18H
- UPC: 697950044088
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
A hardened taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.
Martin Saber Tooth® Single Pitch Roller Chain Sprocket, Taper Bushed Type B, 12.543 in Outside Dia, #160 Chain, 18 Teeth, 2 in Pitch, 11.518 in, 6-1/2 in Hub Dia, 3-1/2 in Length Through Bore, 3535 Taper Lock Bushing, Steel
SPECIFICATIONS
| Bushing Type | : | 3535 Taper Lock |
| Outside Diameter | : | 12.543 in |
| Chain Size | : | #160 |
| Number of Teeth | : | 18 |
| Pitch | : | 2 in |
| Material | : | Steel |
| Type | : | Taper Bushed Type B |
| Pitch Diameter | : | 11.518 in |
| Hub Diameter | : | 6-1/2 in |
| Length Through Bore | : | 3-1/2 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_41SH32_Catalog.pdf
