12SF612-R

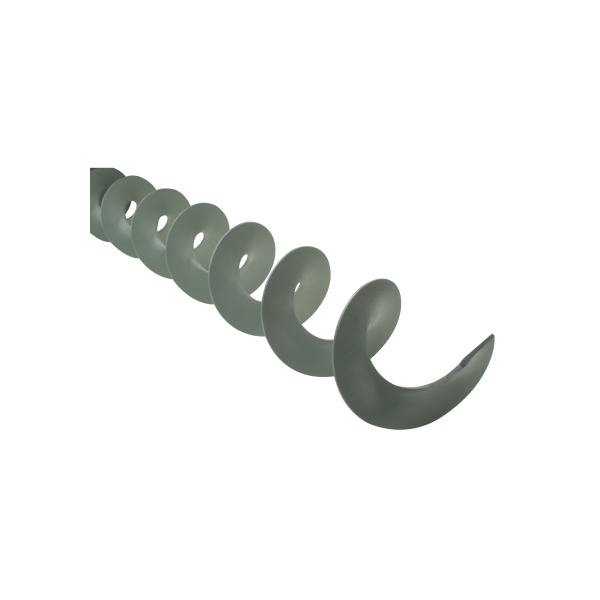

Martin 12SF612-R Sectional Flighting Conveyor Screw, 12 in Dia x 12 in L, 12 in Pitch, Steel
- CP#:
- Item#: 12SF612-R
- Mfr#: 12SF612-R
- UPC: 697950093918
- Can be manufactured from a wide range of materials
- Pitch can be varied on a MTO basis
- Left Hand available
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sectional flights are individual flights or turns blanked from steel plates and formed into a spiral or helix of the desired diameter and pitch to t conveyor screw pipes. The flights are butt welded together to form a continuous conveyor screw. Modications can be furnished, such as fabrication from various metals, different flight thicknesses, other diameters and pitches. The butt weld flight is the same thickness in the full cross section. Stock sectional flight screw diameter from 6 in to 24 in and thickness from 3/16 in to 1/2 in. Right hand flight helix wraps around the pipe in a clockwise direction.
Martin Conveyor Screw, Sectional Flighting, 12 in Dia, 12 in Length, Steel, 12 in Pitch, Right Hand Flight Type
SPECIFICATIONS
| Material | : | Steel |
| Flight Type | : | Right Hand |
| Type | : | Sectional Flighting |
| Diameter | : | 12 in |
| Length | : | 12 in |
| Pitch | : | 12 in |
