12L050

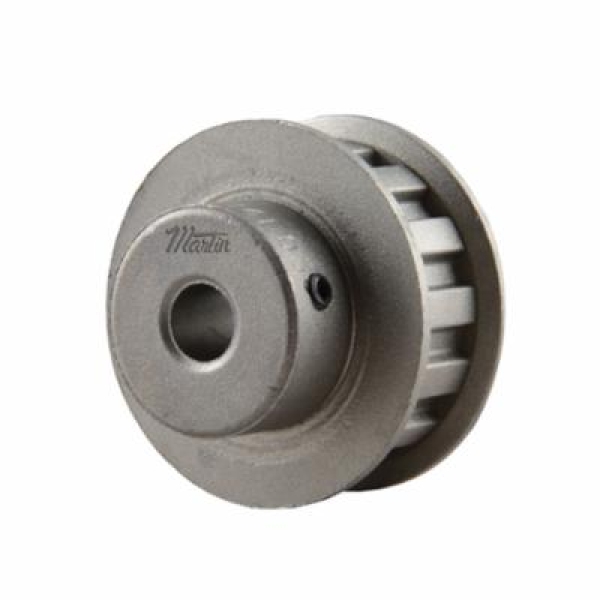

Martin 12L050 Solid Type DF-1 Stock Timing Pulley, 0.375 to 0.813 in Minimum Plain/Reborable Bore, 1.402 in OD, 12 Grooves, 1.432 in Dia Pitch, 0.562 in W Face
- CP#:
- Item#: 12L050
- Mfr#: 12L050
- UPC: 697950093499
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Solid Type DF-1, Minimum Plain/Reborable Bore, 0.375 to 0.813 in Bore Dia, 1.402 in Outside Dia, 1.432 in, 12 Grooves, 3/8 in Pitch, 0.562 in Face Width, 1.66 in Flange Dia, 1-1/16 in Hub Dia, 1/2 in Hub Projection, 1-1/4 in Overall Length, For Use With: 1/2 in W Type L Belt, Steel
SPECIFICATIONS
| Overall Length | : | 1-1/4 in |
| Pitch | : | 3/8 in |
| Material | : | Steel |
| Bore Diameter | : | 0.375 to 0.813 in |
| Bore Type | : | Minimum Plain/Reborable |
| Outside Diameter | : | 1.402 in |
| Number of Grooves | : | 12 |
| Pitch Diameter | : | 1.432 in |
| Face Width | : | 0.562 in |
| Hub Diameter | : | 1-1/16 in |
| Type | : | Solid Type DF-1 |
| Hub Projection | : | 1/2 in |
| Flange Diameter | : | 1.66 in |
| Suitable For Use With | : | 1/2 in W Type L Belt |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10L050_Catalog.pdf
