120S40

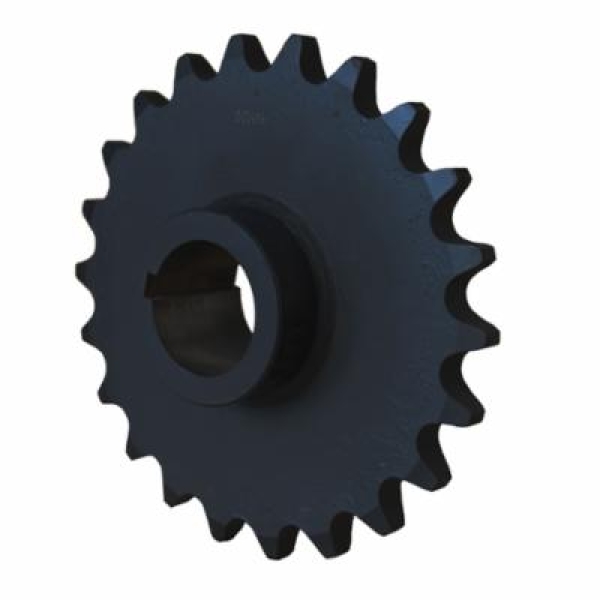

Martin 120S40 MST® S1 Bushed Type 5 Welded Split Single Roller Chain Sprocket, 1.688 to 4.25 in Dia Bore, 19.959 in OD, 120 Chain, 40 Teeth, 1-1/2 in Pitch, Steel
- CP#:
- Item#: 120S40
- Mfr#: 120S40
- UPC: 697950097268
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.
Martin Split Single Roller Chain Sprocket, MST® S1 Bushed Type 5 Welded, 1.688 to 4.25 in Bore Dia, 19.959 in Outside Dia, 120 Chain, 40 Teeth, 1-1/2 in Pitch, 19.118 in, 6-3/8 in Hub Dia, 3/4 in W Keyway, 4-7/8 in Length Through Bore, Type S1 Split Taper Bushing, Steel
SPECIFICATIONS
| Bushing Type | : | Type S1 Split Taper |
| Bore Diameter | : | 1.688 to 4.25 in |
| Outside Diameter | : | 19.959 in |
| Chain Size | : | 120 |
| Number of Teeth | : | 40 |
| Pitch | : | 1-1/2 in |
| Material | : | Steel |
| Keyway Size | : | 3/4 in W |
| Hub Diameter | : | 6-3/8 in |
| Type | : | MST® S1 Bushed Type 5 Welded |
| Pitch Diameter | : | 19.118 in |
| Length Through Bore | : | 4-7/8 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_50A112_Catalog.pdf
