120R80

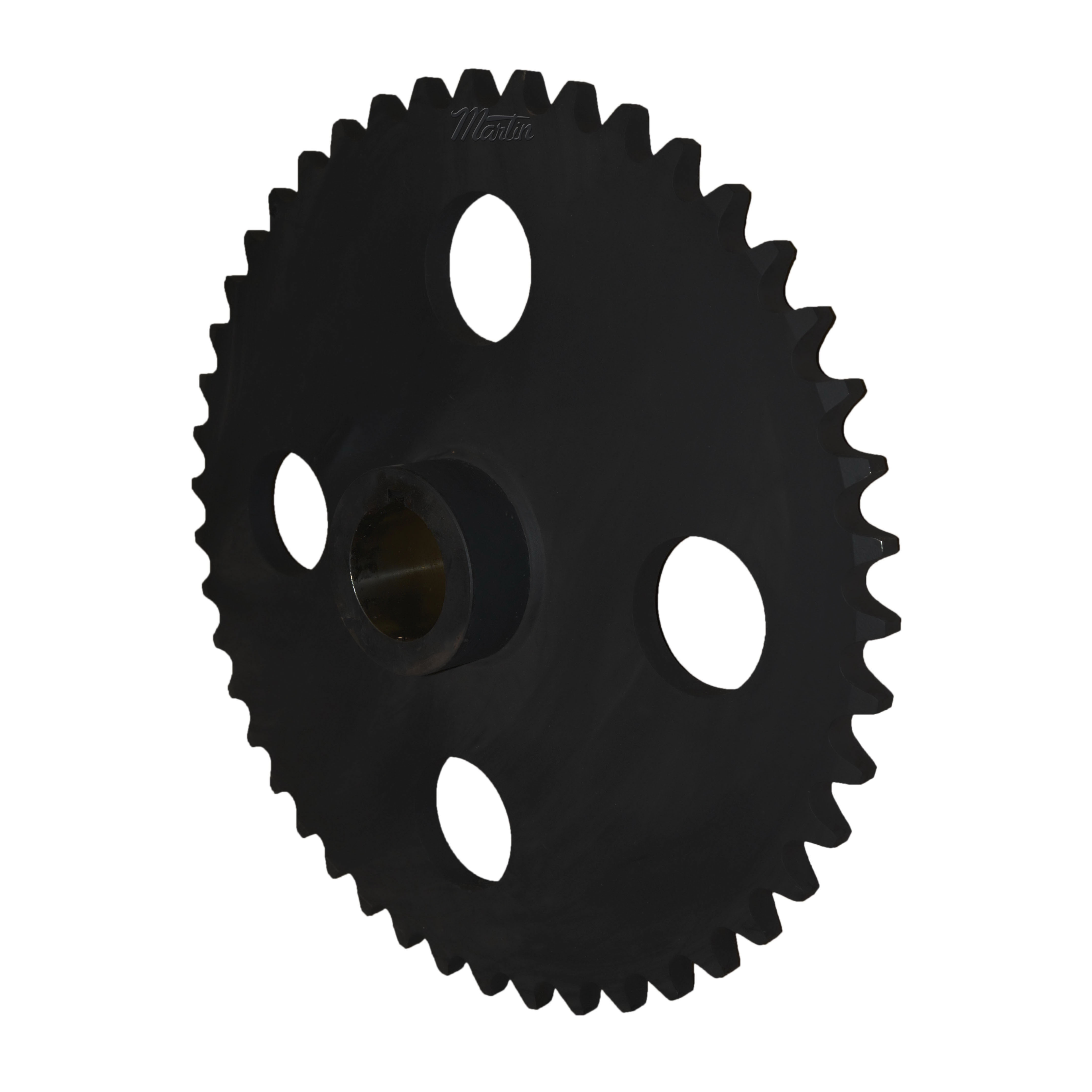

Martin 120R80 Type 6 Single Strand Welded Bushed Roller Chain Sprocket With Lightening Hole, 1-3/8 to 3-5/8 in Dia Bore, 39.078 in OD, #120 Chain, 80 Teeth, 1-1/2 in Pitch, Steel
- CP#:
- Item#: 120R80
- Mfr#: 120R80
- UPC: 697950125909
- Interchangeable with other manufacturer's split-taper bushings
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
- Bores are concentric to pitch line, minimizing run out
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.
Martin Roller Chain Sprocket, Type 6 Single Strand Welded Bushed, 1-3/8 to 3-5/8 in Bore, 39.078 in OD, #120 Chain, 80 Teeth, 1-1/2 in Pitch, 38.207 in Pitch Diameter, 5-1/2 in Diameter Hub, 3/4 in Keyway, 4 in Length Through Bore, MST® R2 Bushing, Steel
SPECIFICATIONS
| Bushing Type | : | MST® R2 |
| Bore Diameter | : | 1-3/8 to 3-5/8 in |
| Outside Diameter | : | 39.078 in |
| Chain Size | : | #120 |
| Number of Teeth | : | 80 |
| Pitch | : | 1-1/2 in |
| Material | : | Steel |
| Keyway Size | : | 3/4 in |
| Hub Diameter | : | 5-1/2 in |
| Type | : | Type 6 Single Strand Welded Bushed |
| Pitch Diameter | : | 38.207 in |
| Length Through Bore | : | 4 in |
