100E22H

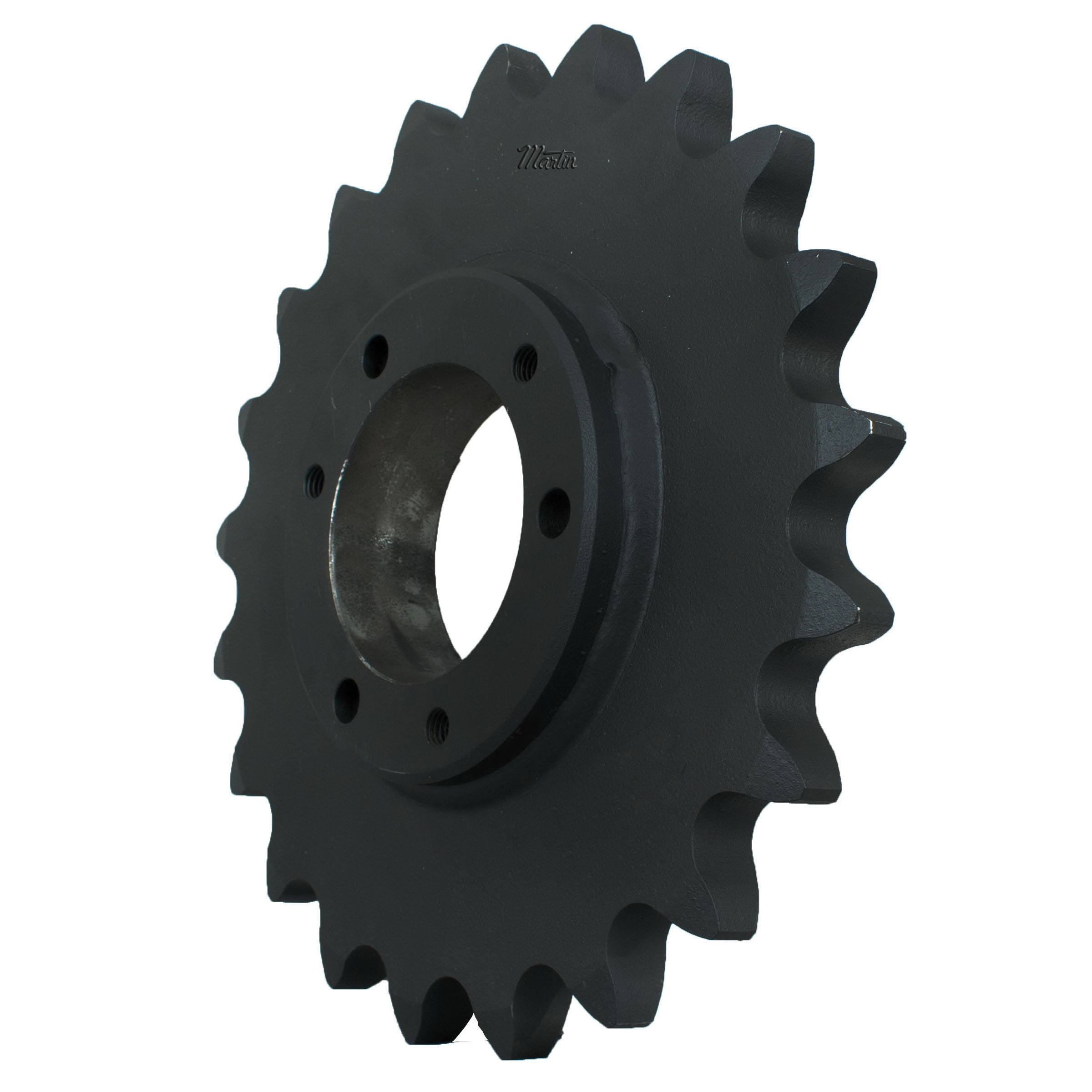

Martin 100E22H Type B Single Strand Welded Bushed Roller Chain Sprocket With Hardened Teeth, 0.875 to 3.313 in Dia Bore, 9.444 in OD, #100 Chain, 22 Teeth, 1-1/4 in Pitch, Steel
- CP#:
- Item#: 100E22H
- Mfr#: 100E22H
- UPC: 697950042404
- Interchangeable with other manufacturer's QD® bushings
- Stocked heat treat
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
- Bores are concentric to pitch line, minimizing run out
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin saber tooth sprockets have hardened teeth, which provide longer chain and sprocket life. The hardened teeth on the smaller sprocket of a roller chain drive are recommended if the drive ratio is four to one or greater if the smaller sprocket has 24 teeth or less and is running at a speed of over 600 rpm.
Martin Roller Chain Sprocket, Type B Single Strand Welded Bushed, 0.875 to 3.313 in Bore, 9.444 in OD, #100 Chain, 22 Teeth, 1-1/4 in Pitch, 8.7833 in Pitch Diameter, 6-1/4 in Diameter Hub, 1/2-13 UNC Screw, 1-5/8 in Length Through Bore, QD® E Bushing, Steel
SPECIFICATIONS
| Bushing Type | : | QD® E |
| Bore Diameter | : | 0.875 to 3.313 in |
| Outside Diameter | : | 9.444 in |
| Chain Size | : | #100 |
| Number of Teeth | : | 22 |
| Pitch | : | 1-1/4 in |
| Material | : | Steel |
| Type | : | Type B Single Strand Welded Bushed |
| Pitch Diameter | : | 8.7833 in |
| Hub Diameter | : | 6-1/4 in |
| Length Through Bore | : | 1-5/8 in |
| Screw Size | : | 1/2-13 UNC |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_815A13B_Specification_Sheet.pdf -
