1 B 160 TB

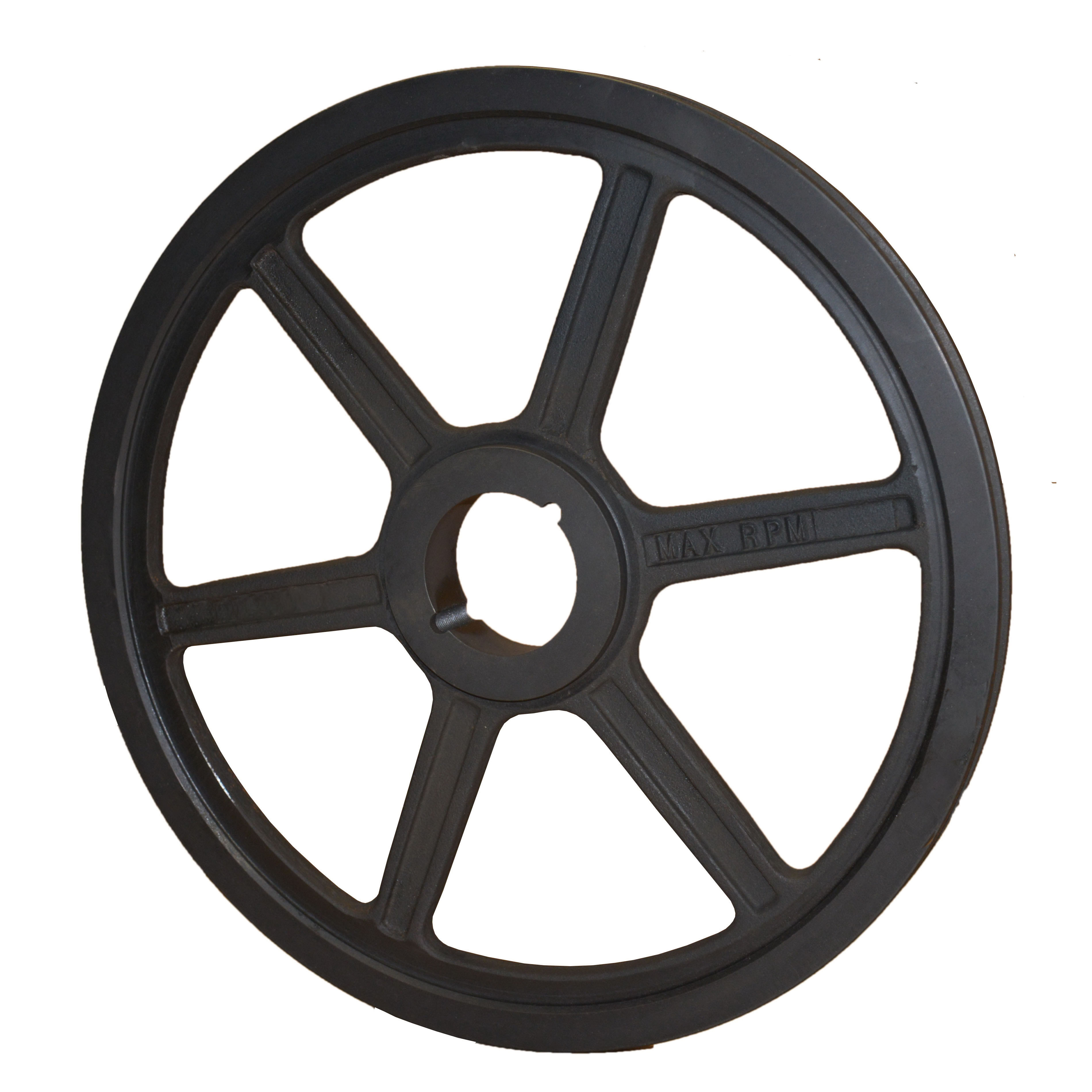

Martin 1 B 160 TB Type C Single Groove Arm/Spoke Conventional Sheave, Bushed Bore, 1/2 to 2-1/4 in Dia Bore, 16.35 in OD, 16 in Dia Pitch, 1 in W Face
- CP#:
- Item#: 1 B 160 TB
- Mfr#: 1 B 160 TB
- UPC: 697950514864
- Interchangeable with other manufacturer's QD® bushings
- Class 30 gray iron
- Tolerances adhere to industry guidelines
- Precise machining and processes ensure consistent finish and high quality
- Statically balanced with maximum rim speed marked on print
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Conventional (wide/classical) sheaves are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-Belt sheaves to accept "A", "B", "C", and "D" belts.
Martin Conventional Sheave, Type C Single Groove Arm/Spoke, Bushed Bore, 1/2 to 2-1/4 in Bore, 16.35 in OD, 16 in Pitch Diameter, 1 in Face Width, TB 2517 Bushing, 1-15/16 in Overall Length, For Use With: A/B Cross Section Belt, Cast Iron
SPECIFICATIONS
| Bushing Type | : | TB 2517 |
| Material | : | Cast Iron |
| Overall Length | : | 1-15/16 in |
| Bore Type | : | Bushed |
| Bore Diameter | : | 1/2 to 2-1/4 in |
| Outside Diameter | : | 16.35 in |
| Pitch Diameter | : | 16 in |
| Face Width | : | 1 in |
| Type | : | Type C Single Groove Arm/Spoke |
| Suitable For Use With | : | A/B Cross Section Belt |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_103V1060E_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_105V2360TB_Catalog.pdf -
VIDEO LINK
https://youtu.be/Uow3rcJsvzg
