Martin 1 3V 800 TB
Martin

Martin 1 3V 800 TB

loading
Martin
Email Print

1 3V 800 TB

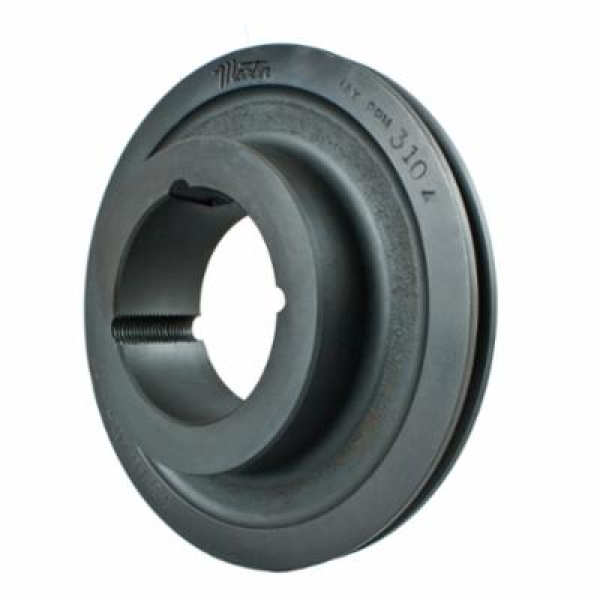

Martin Hi-Cap® 1 3V 800 TB Type B-2 Web Single Groove Sheave, TB Bushed Bore, 1/2 to 2-1/2 in Dia Bore, 8 in OD, 7.95 in Dia Pitch, 0.688 in W Face

  • Item#: 1 3V 800 TB
  • Mfr#: 1 3V 800 TB
  • UPC: 697950152868
    • Class 30 Gray Iron
    • Tolerances adhere to industry guidelines
    • Precise machining and processes ensure consistent finish and high quality
    • Statically balanced with maximum rim speed marked on print
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V, and 8V belts.

Martin Hi-Cap® Single Groove Sheave, Type B-2 Web, TB Bushed Bore, 1/2 to 2-1/2 in Bore, 8 in OD, 7.95 in Pitch Diameter, 0.688 in Face Width, 2517 Bushing, 1.81 in Overall Length, For Use With: 3V-Cross Section V-Belts, Cast Iron

SPECIFICATIONS

Bushing Type      :      2517
Material      :      Cast Iron
Overall Length      :      1.81 in
Bore Type      :      TB Bushed
Bore Diameter      :      1/2 to 2-1/2 in
Outside Diameter      :      8 in
Pitch Diameter      :      7.95 in
Face Width      :      0.688 in
Type      :      Type B-2 Web
Suitable For Use With      :      3V-Cross Section V-Belts

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10_3V_500_TB_Catalog.pdf
  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_3_5V_710_SF_Specification_Sheet.pdf
