Martin
1 3V 1400 TB

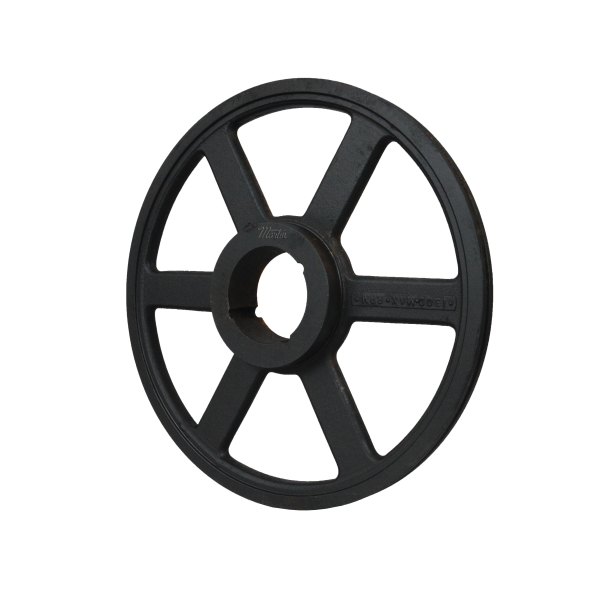

Martin Hi-Cap® 1 3V 1400 TB Arm/Spoke Type C-3 Wedge Stock Sheave, 1/2 to 2-1/4 in TB Bushed Bore, 14 in OD, 1 Grooves, 13.95 in Dia Pitch, 13/16 in W Face
- Item#: 1 3V 1400 TB
- Mfr#: 1 3V 1400 TB
- UPC: 697950152691
- Interchangeable with other manufacturer's taper bushings
- Tolerances adhere to industry guidelines
- Precise machining and processes ensure consistent finish and high quality
- Statically balanced with maximum rim speed marked on print
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V and 8V belts.
Martin Hi-Cap® Wedge Stock Sheave, Arm/Spoke Type C-3, TB Bushed Bore, 1/2 to 2-1/4 in Bore, 14 in OD, 13.95 in Pitch Diameter, 1 Grooves, 13/16 in Face Width, 2517 Bushing, 1-3/4 in Overall Length, For Use With: 3V-Cross Section V-Belts, Gray Cast Iron
SPECIFICATIONS
| Bushing Type | : | 2517 |
| Material | : | Gray Cast Iron |
| Overall Length | : | 1-3/4 in |
| Suitable For Use With | : | 3V-Cross Section V-Belts |
| Type | : | Arm/Spoke Type C-3 |
| Bore Diameter | : | 1/2 to 2-1/4 in |
| Bore Type | : | TB Bushed |
| Outside Diameter | : | 14 in |
| Number of Grooves | : | 1 |
| Pitch Diameter | : | 13.95 in |
| Face Width | : | 13/16 in |
