- Lovejoy® 69790498513
69790498513

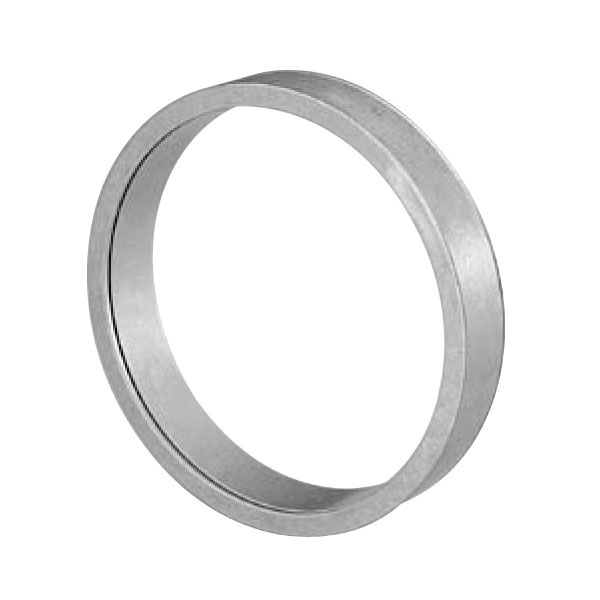

Lovejoy® 69790498513 SLD 350 Series Low Torque Internal Shaft Locking Device, 24 mm Dia Bore, 28 mm OD, 0.945 in Dia Hub, Metallic Collar/Steel Screw
- CP#:
- Item#: SLD 350 MM 24X28
- Mfr#: 69790498513
- UPC: 697904985139
- Versus traditional keyed connection
- No Backlash due to fit tolerances
- No impact effect from reversing loads
- Ability to adjust axial position and angular timing
- No fretting corrosion due to movement at the fit interface
- Versus traditional interference fits
- Easier and quicker to install
- Higher contact pressures can transmit greater torques
- Easy and quick to remove without damaging the shaft or hub even after years of service
- Eliminate cost of machining keyways or splines
- Reduce the shaft stress by removing keyways or splines
- Eliminating keyways often allows the use of a smaller diameter shaft
- Can place anywhere on shaft and allows for easy angular timing
- Easy removal without damaging the shaft or hub means easier maintenance for your customer
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Lovejoy® Internal Shaft Locking Device, Low Torque, Series: SLD 350 Series, 24 mm Bore, 28 mm OD, 0.945 in Diameter Hub, 62.3 ft-lb Transmissible Torque, 20595 psi Shaft Contact Pressure, 14504 psi Hub Contact, Metallic Collar/Steel Screw, Silver
SPECIFICATIONS
| Series | : | SLD 350 Series |
| Bore Diameter | : | 24 mm |
| Outside Diameter | : | 28 mm |
| Material | : | Metallic Collar/Steel Screw |
| Finish | : | Silver |
| Hub Contact Pressure | : | 14504 psi |
| Type | : | Low Torque |
| Shaft Contact Pressure | : | 20595 psi |
| Transmissible Torque | : | 62.3 ft-lb |
| Hub Diameter | : | 0.945 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_69790410595_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_69790498513_Specification_Sheet.pdf
